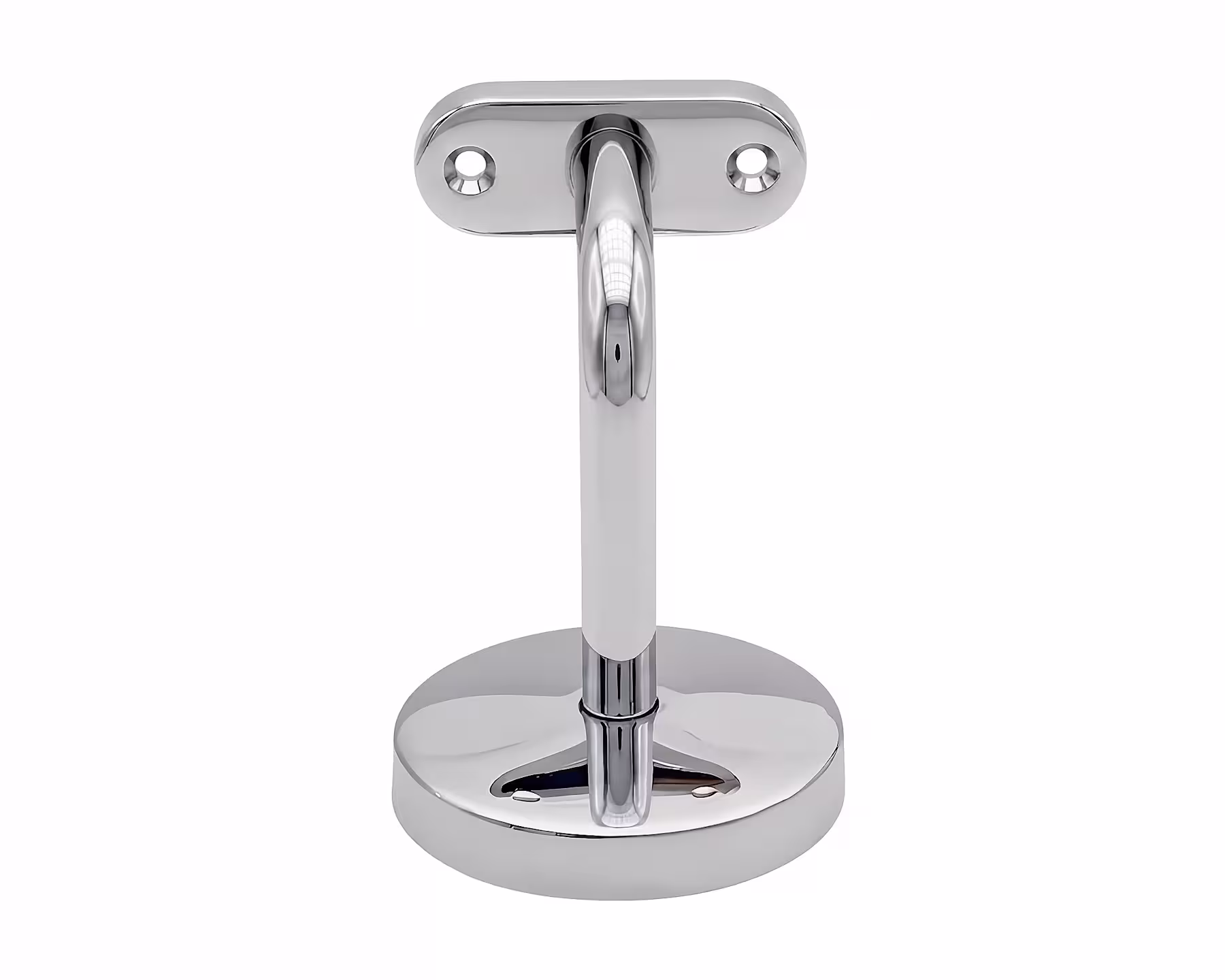

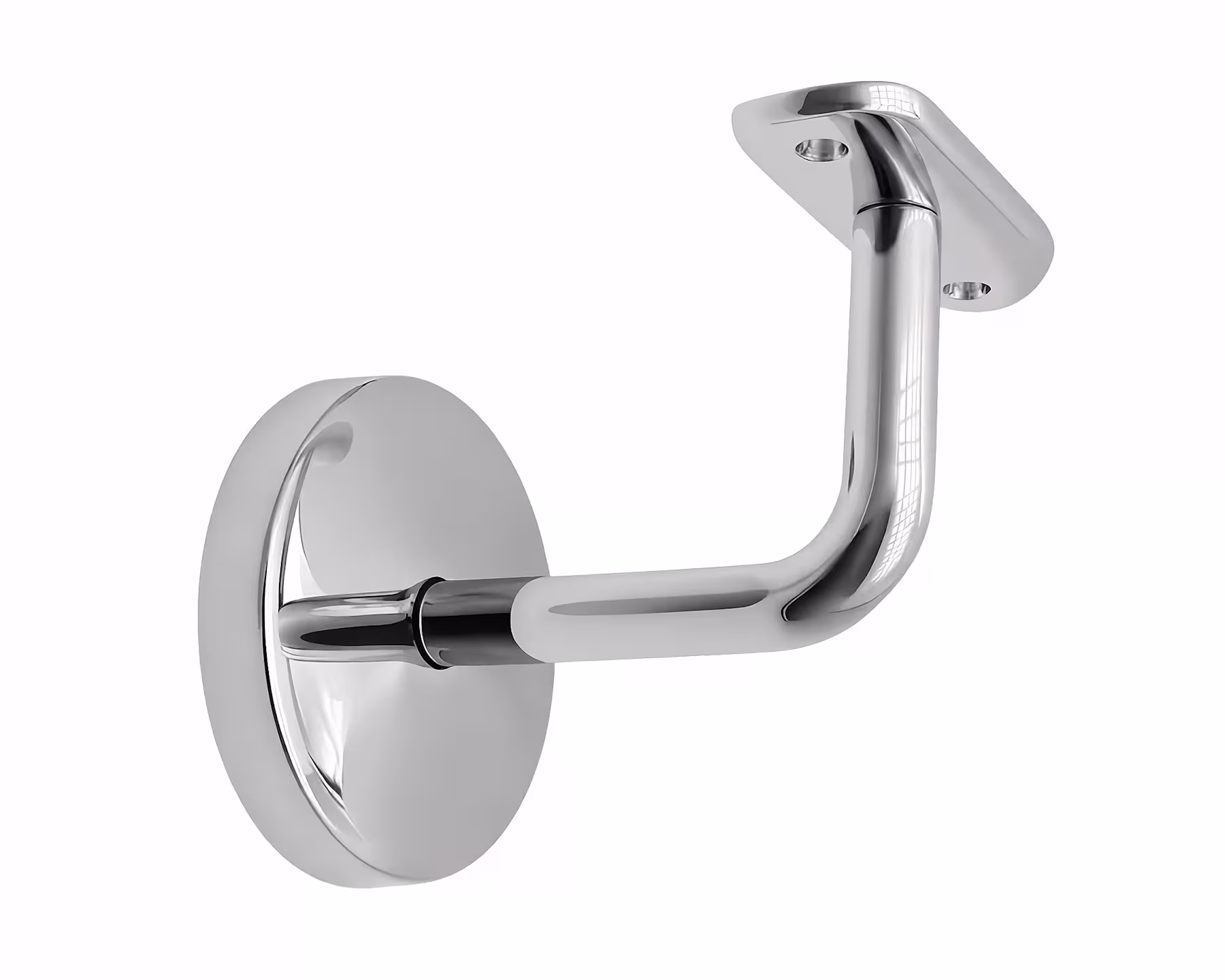

Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 201 (Product code: 9005)

Views: 7627 | Rating:
• Manufacturer: Vinmay
• Manufacturer code: TP201F42.4-45-48.3
• UCGFEA: 7308 90 98 00
Grade:

Medium corrosion resistance, non-magnetic - more details...

Prices
from 50 pcs. 241 грн. / pcs.
Updated:
Available
Quantity in stock: 142
Price: 248 грн. / pcs.
plus shipping
Qty:
pcs.

Characteristics Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 201

Actual weight: 0.25 Kg / pcs.

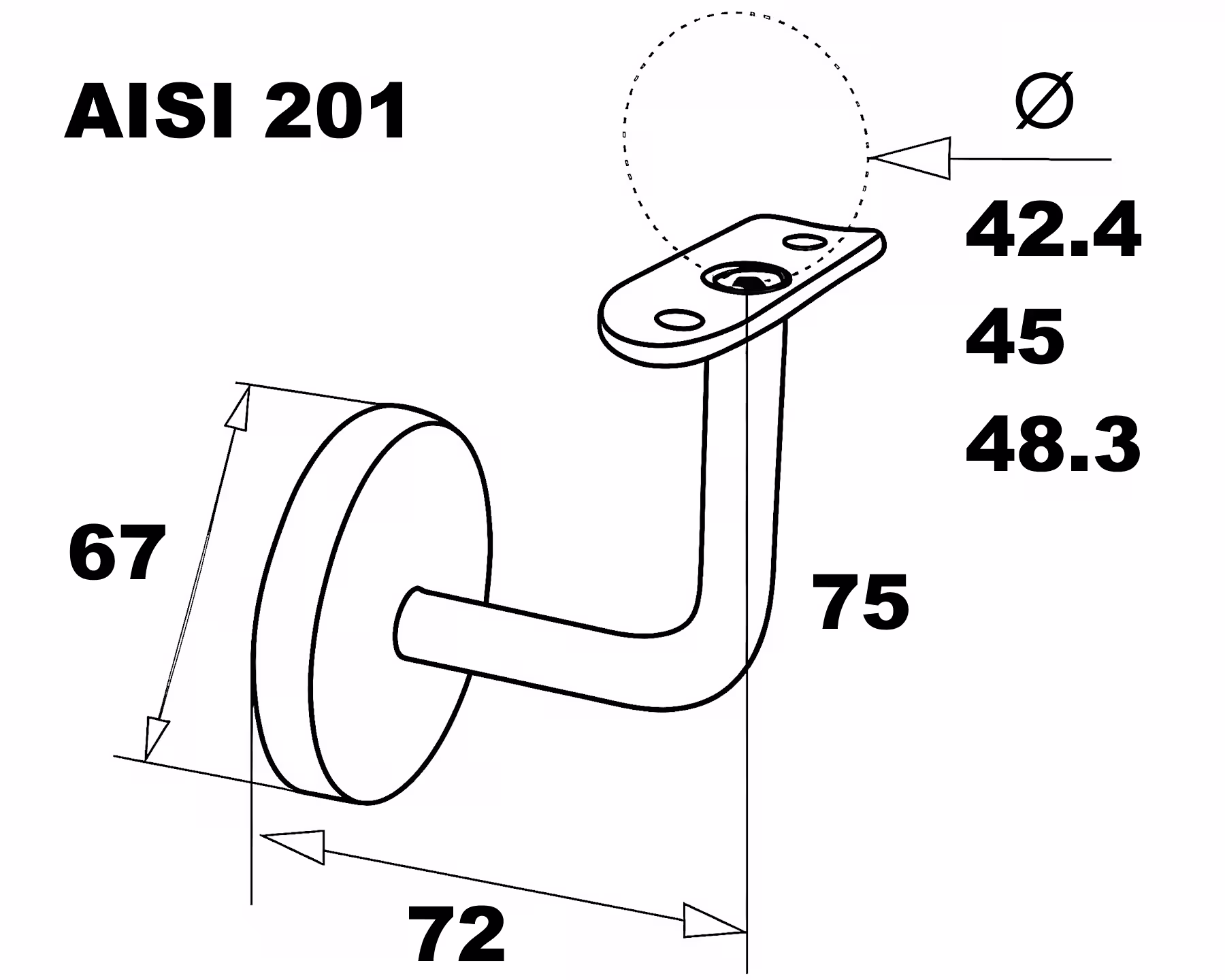

Dimensions:
Height, H (mm): 75
Length, L (mm): 72
External surface treatment:
Surface / mirror polished, glossy / : 600 GRIT
Color: chrome
Pattern: mirror
Material of manufacture:
Metal type: stainless steel
Steel grade: AISI 201
Steel Grade Analog: EN 1.4372
Design features:
Type of connection with pipe: for welding or self-tapping screws
Connection of parts: combined
Number of parts: 4
1. Saddle / attached to the holder rod with a hex bolt (included) and a 4 mm hex key (not included). The position of the bracket can be adjusted / : length 59 mm ▸ width 25 mm ▸ thickness 3.5 mm ▸ number of countersunk holes for mounting: 2 ▸ diameter of mounting holes ∅ 5 mm ▸ distance between hole centers 42 mm;
2. Holder rod (base) / a curved cylindrical part that is connected to the saddle at one end with a bolt and attached to the flange at the other end by welding / : bend angle 90° ▸ outer diameter ∅ 16 mm ▸ height 75 mm ▸ length 72 mm;
3. Flange / a disk-shaped part that is welded to the rod, is attached to a flat surface with self-tapping screws, bolts, or wall plugs (not included) / : outer diameter ∅ 64 mm ▸ thickness 3 mm ▸ number of countersunk holes for mounting: 3 ▸ diameter of mounting holes ∅ 6 mm;
4. Cover / a decorative cup (cover) that conceals and hides the flange and fasteners / : outer diameter ∅ 67 mm ▸ height 8 mm ▸ thickness 1 mm;
Operating temperature range
Max. continuous operating temperature: +400°C
Max. intermittent temperature: +550°C
Min. continuous operating temperature: -40°C
Thermal cycling resistance: moderate
Intended Use & Application

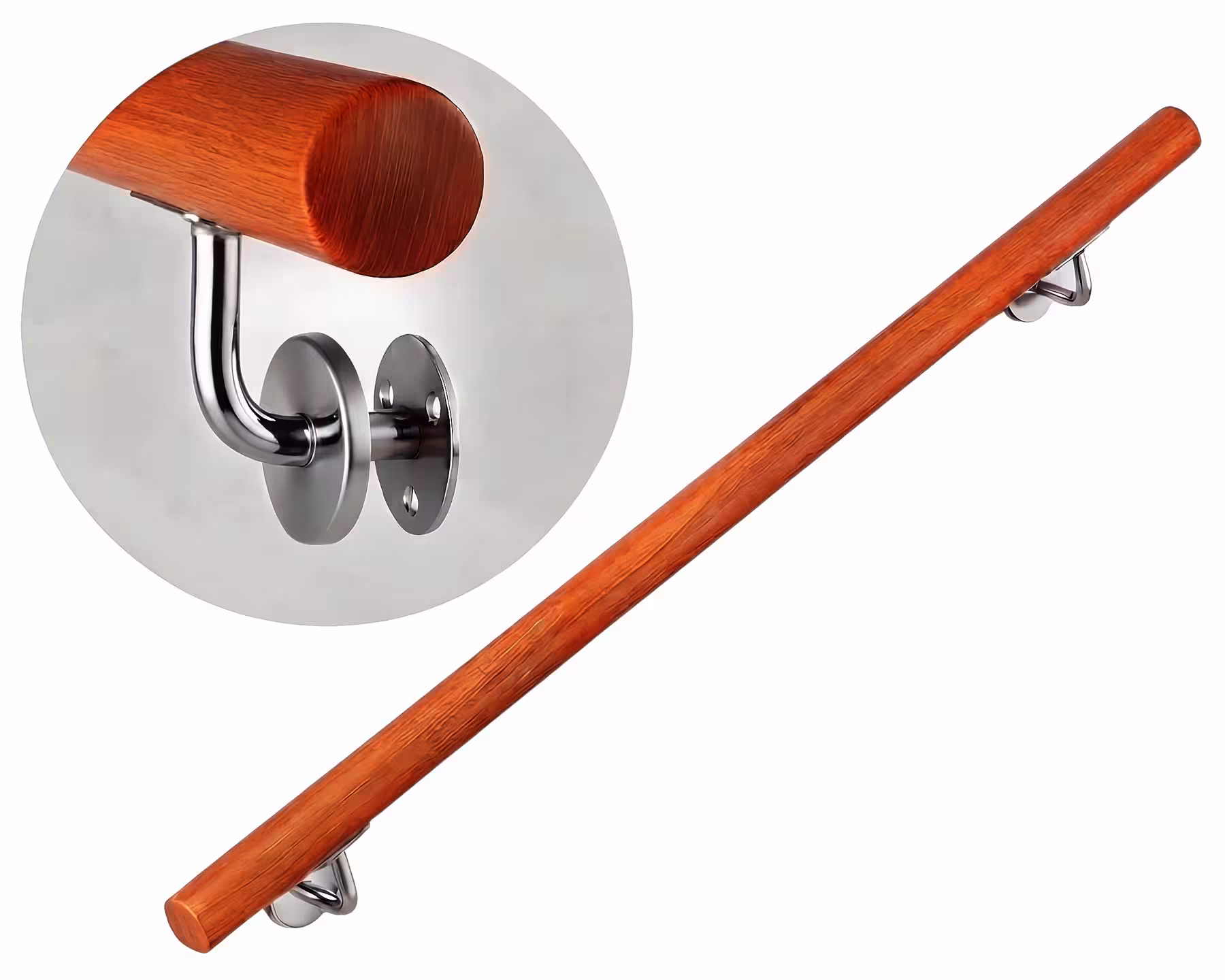

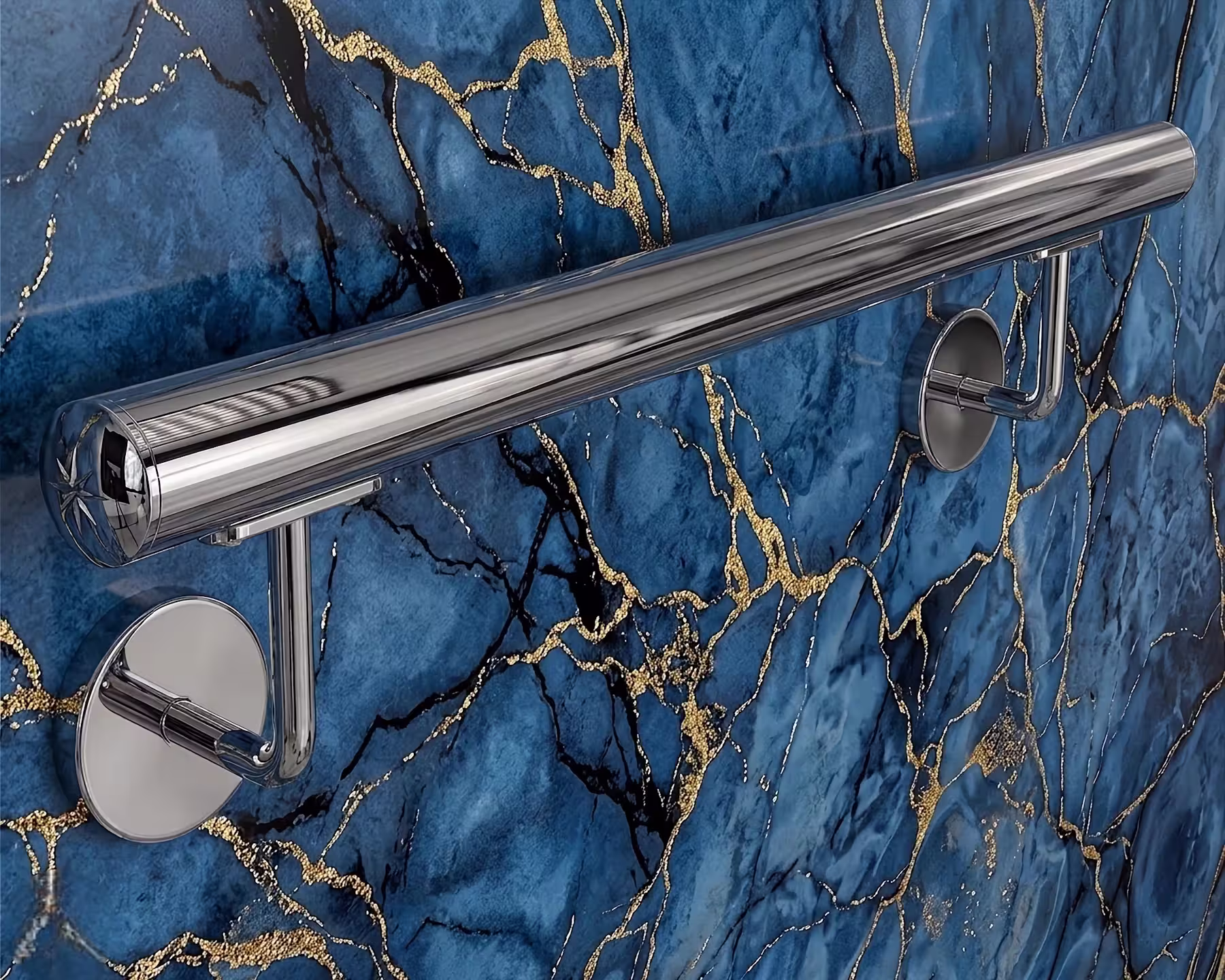

Application Areas: wall-mounted handrail
Recommended Environment: office and retail centers, for low humidity interiors, for moderate (non-aggressive) environments, educational institutions, medical institutions, clinics, train stations, public places, home
Usage Restrictions: do not use in environments with constant high humidity, for secure structural fastening and personal safety — the minimum recommended number of supports (brackets) for a 2000 mm long handrail is 3 units, ▸screws, bolts, or anchors (not included in the set) — must be made exclusively of corrosion-resistant stainless steel
Maintenance recommendations
Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge
⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes
Additional information:
Order Step (pcs): 1
Product condition: new
Packaging: pellicle
Product Type: handrail holder (handrail bracket)
Country of Origin: China

Description Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 201

Tired of looking for a universal solution for handrail mounting? Stop your search! We present to your attention the quintessence of strength and elegance - a stainless steel handrail holder. It's not just a fastener, it's the final touch that will give your stairs, balcony, or pool a flawless look.

High-precision mounting for your comfort

Designed with filigree precision, this holder is ideal for round pipes with three of the most popular diameters: 42.4, 45, and 48.3 mm. The surface is processed to a mirror shine with a 600 GRIT finish, which is not only visually impressive but also provides exceptional resistance to external influences. Thanks to this, your railings will look like new for many years, despite moisture, temperature changes, or mechanical stress.

Maximum reliability, time-tested

Made of high-quality stainless steel AISI 201, this holder combines affordability and excellent corrosion resistance. Its design is thought out to the smallest detail:

  • Four-component structure for maximum flexibility and strength.
  • Two mounting options for the pipe: secure fixation with self-tapping screws or welding for absolute strength.
  • A decorative cover that hides the fasteners, providing an aesthetic and finished look.

Installation - a matter of a few minutes

Forget about complex instructions and hours of work. The unique design allows the holder to be mounted easily and quickly. It can be attached to both a pipe and any flat surface. Even a novice can install it, turning the usual process into a pleasant activity.

The handrail holder from Ukirs is an investment in the safety and style of your space. It doesn't just hold the railings, it emphasizes their beauty and reliability. Don't settle for compromises, choose the best!

Only at Ukirs can you buy the highest quality stainless steel handrail holder for round pipes ∅ 42.4, 45, 48.3 mm 600 GRIT AISI 201 at the most favorable price with delivery throughout Ukraine!
