Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 304 (Product code: 9006)

Name: Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 304
Brand: Vinmay
SKU: 9006
Price: 252 UAH
Availability: InStock
Rating: 10.00 (1 reviews)

Views:

7498

Rating:

• Manufacturer: Vinmay •

• Manufacturer code: TP304F42.4-45-48.3 •

• UCGFEA: 7308 90 98 00 •

Grade:

High corrosion resistance. Food-grade, non-magnetic - more details...

Prices

from 50 pcs.

244 грн. / pcs.

Updated: Sunday, 19 April 2026

Available

Quantity in stock: 284

Price: 252 грн. / pcs.

plus shipping

Qty:

pcs.

Characteristics Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 304

Actual weight: 0.25 Kg / pcs.

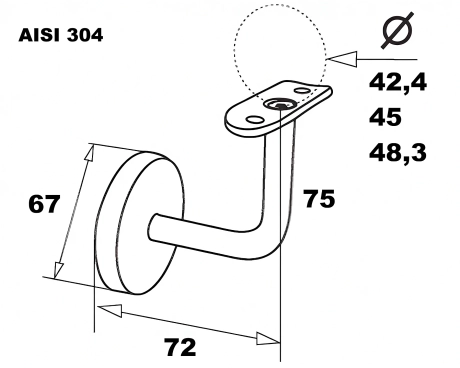

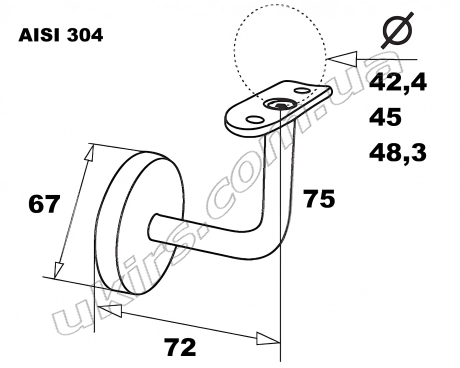

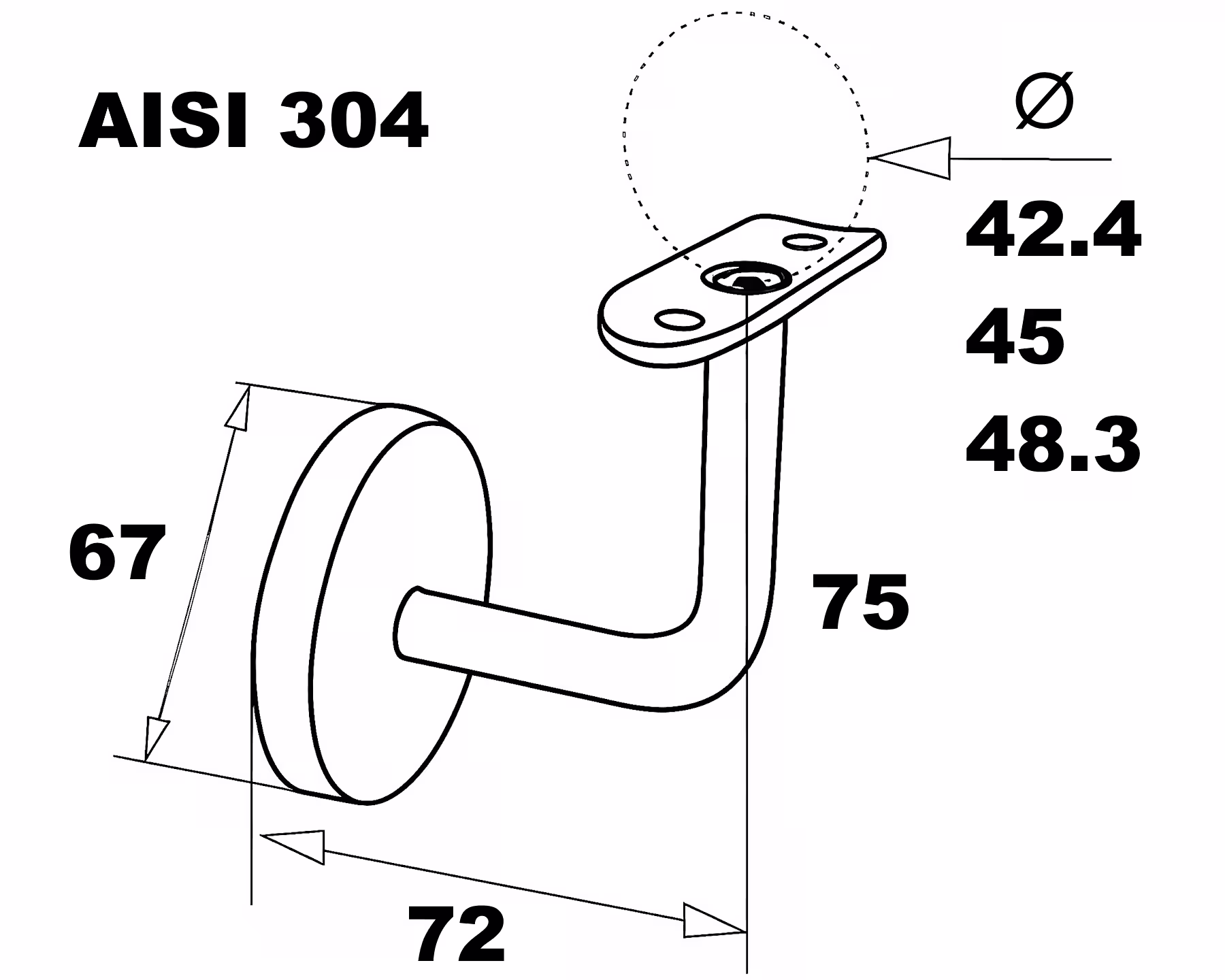

Dimensions:

Height, H (mm): 75

Length, L (mm): 72

External surface treatment:

Surface / mirror polished, glossy / : 600 GRIT

Color: chrome

Pattern: mirror

Material of manufacture:

Metal type: food-grade stainless steel

Steel grade: AISI 304

Steel Grade Analog: EN 1.4301

Design features:

Type of connection with pipe: for welding or self-tapping screws

Connection of parts: combined

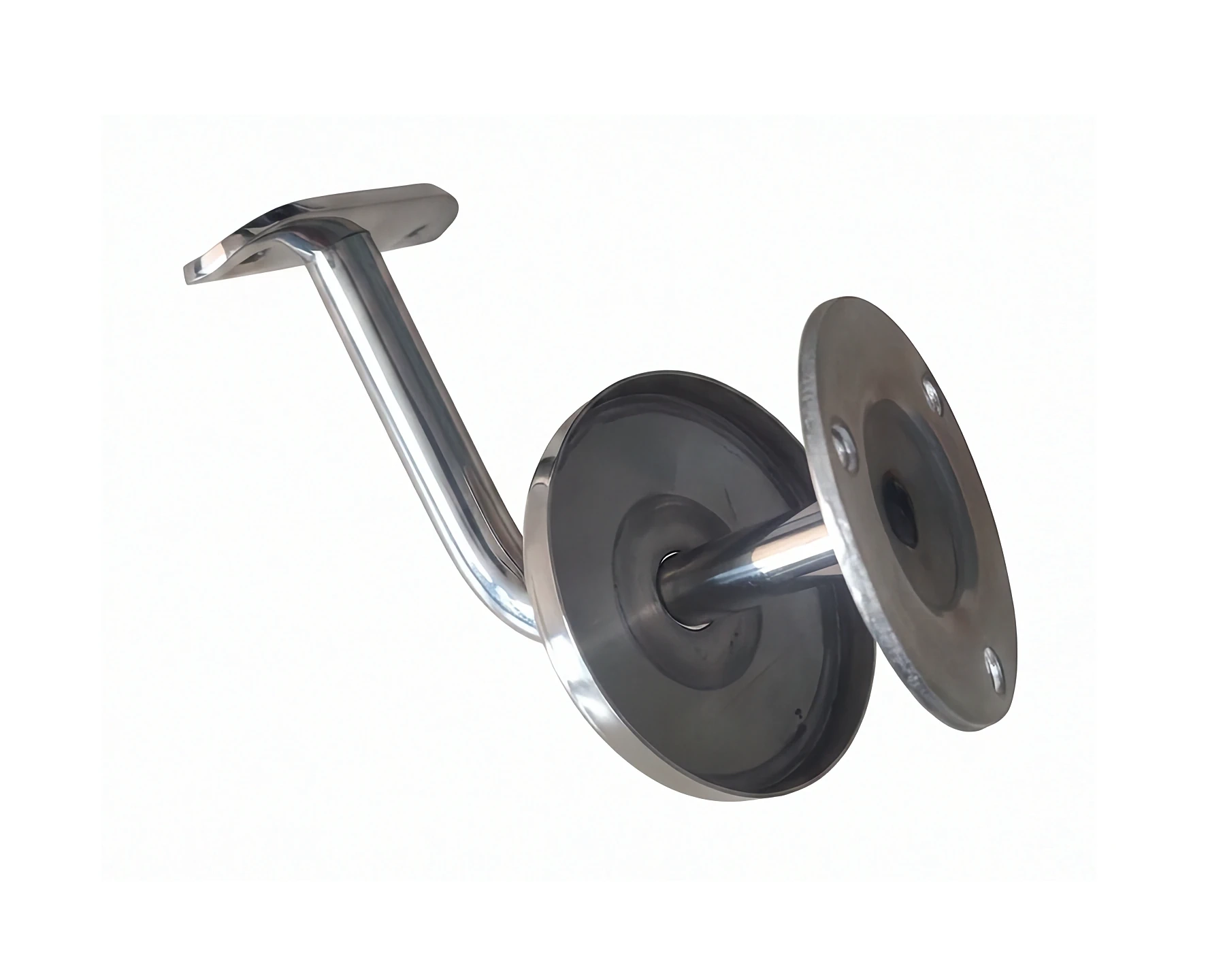

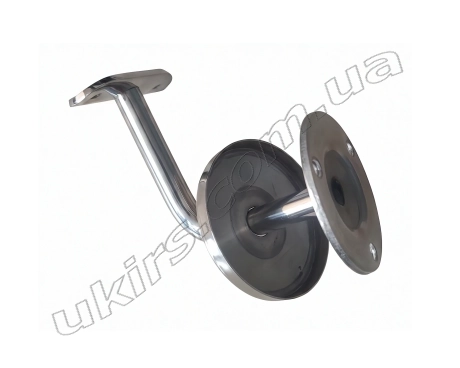

Number of parts: 4

1. Saddle / attached to the holder rod with a hex bolt (included) and a 4 mm hex key (not included). The position of the bracket can be adjusted / : length 59 mm ▸ width 25 mm ▸ thickness 3.5 mm ▸ number of countersunk holes for mounting: 2 ▸ diameter of mounting holes ∅ 5 mm ▸ distance between hole centers 42 mm;

2. Holder rod (base) / a curved cylindrical part that is connected to the saddle at one end with a bolt and attached to the flange at the other end by welding / : bend angle 90° ▸ outer diameter ∅ 16 mm ▸ height 75 mm ▸ length 72 mm;

3. Flange / a disk-shaped part that is welded to the rod, is attached to a flat surface with self-tapping screws, bolts, or wall plugs (not included) / : outer diameter ∅ 64 mm ▸ thickness 3 mm ▸ number of countersunk holes for mounting: 3 ▸ diameter of mounting holes ∅ 6 mm;

4. Cover / a decorative cup (cover) that conceals and hides the flange and fasteners / : outer diameter ∅ 67 mm ▸ height 8 mm ▸ thickness 1 mm;

Operating temperature range

Max. continuous operating temperature: +600°C

Max. intermittent temperature: +850°C

Min. continuous operating temperature: -196°C

Thermal cycling resistance: high

Intended Use & Application

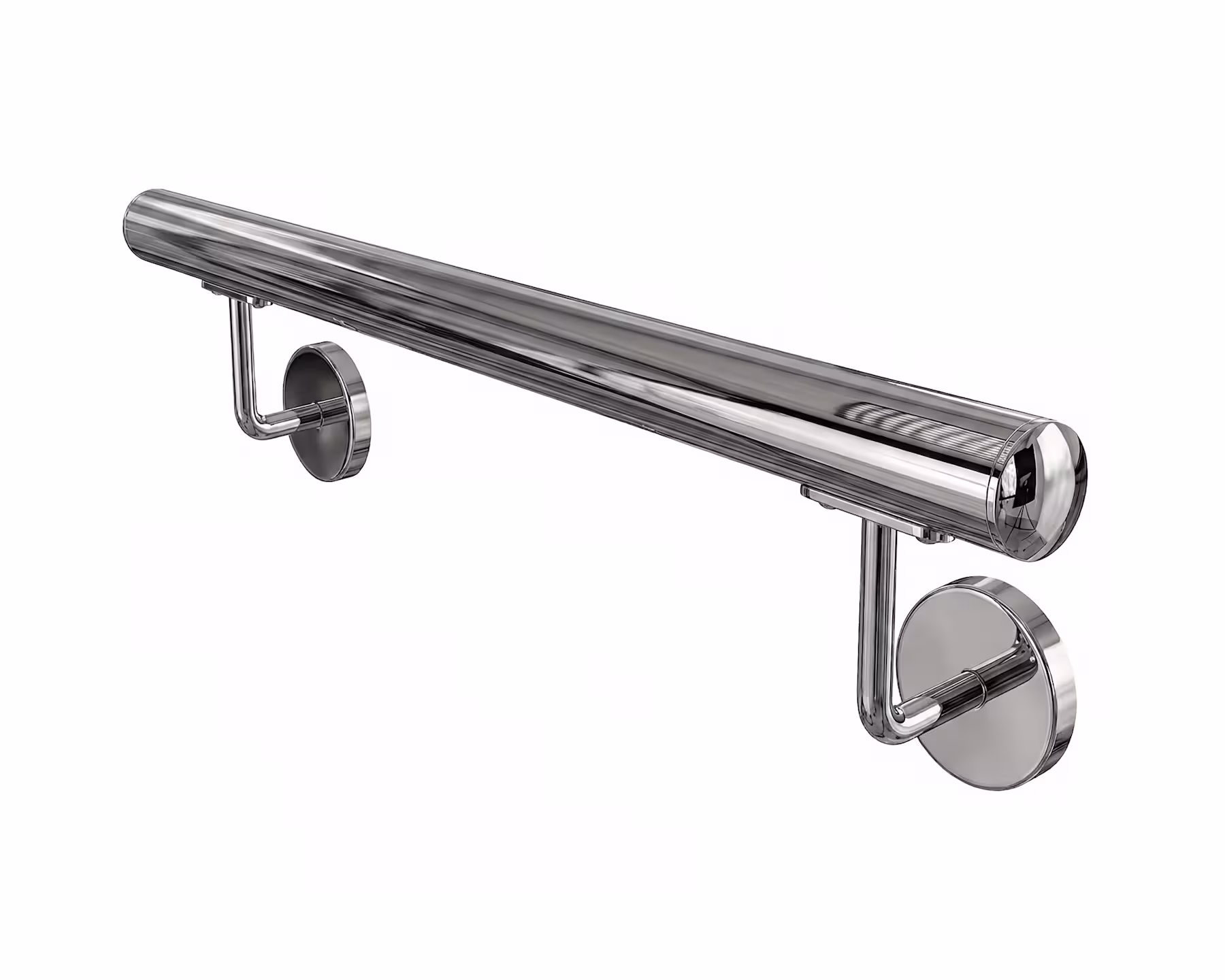

Application Areas: wall-mounted handrail

Recommended Environment: street (temperate climate), coastal areas, swimming pools, saunas, bathrooms, bathroom, educational institutions, medical institutions, clinics, train stations, public places, home

Usage Restrictions: for secure structural fastening and personal safety — the minimum recommended number of supports (brackets) for a 2000 mm long handrail is 3 units, ▸screws, bolts, or anchors (not included in the set) — must be made exclusively of corrosion-resistant stainless steel

Maintenance recommendations

Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge

⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes

Additional information:

Order Step (pcs): 1

Product condition: new

Packaging: pellicle

Product Type: handrail holder (handrail bracket)

Country of Origin: China

Description Stainless steel handrail holder for round pipe ∅ 42.4 / ∅ 45 / ∅ 48.3 mm 600 GRIT AISI 304

Looking for a fastener that will last for decades without losing its shine and strength? This holder is exactly what you need. It is designed for those who don't compromise, choosing only the best for their home or business.

Flawless aesthetics and reliability

Made of high-quality food-grade stainless steel AISI 304, this holder has exceptional resistance to corrosion and aggressive environments. This makes it an ideal choice for use in wet areas, such as swimming pools, saunas, or bathrooms, as well as outdoors.

The surface of the holder features a mirror polish 600 GRIT, giving it a stunning, radiant look. This finish not only attracts the eye but also makes the product resistant to minor damage and dirt, greatly simplifying maintenance.

Versatility and ease of installation

Thanks to its well-thought-out design, the holder or bracket is suitable for the most popular diameters of round pipes: 42.4, 45, and 48.3 mm. This allows it to be used for a wide range of projects. Installation does not require special skills: you can attach the holder to a pipe with self-tapping screws or to a flat surface. For maximum reliability, welding is also an option.

The four-component structure with a decorative cover allows you to not only securely fix the handrail but also hide all mounting elements, ensuring a minimalistic and elegant final result.

Choose a stainless steel handrail holder or bracket made of AISI 304 to invest in durability, safety, and a flawless style. It's a choice that will emphasize quality and attention to detail.

Only at Ukirs can you buy the highest quality stainless steel handrail holder for round pipes ∅ 42.4, 45, 48.3 mm 600 GRIT AISI 304 at the most favorable price with delivery throughout Ukraine!
