Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 201 (Product code: 9008)

Views: 6927 | Rating:
• Manufacturer: Vinmay
• Manufacturer code: TP201F48.3-50.8
• UCGFEA: 7308 90 98 00
Grade:

Medium corrosion resistance, non-magnetic - more details...

Prices
from 50 pcs. 241 грн. / pcs.
Updated:
Available
Quantity in stock: 172
Price: 248 грн. / pcs.
plus shipping
Qty:
pcs.

Characteristics Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 201

Actual weight: 0.25 Kg / pcs.

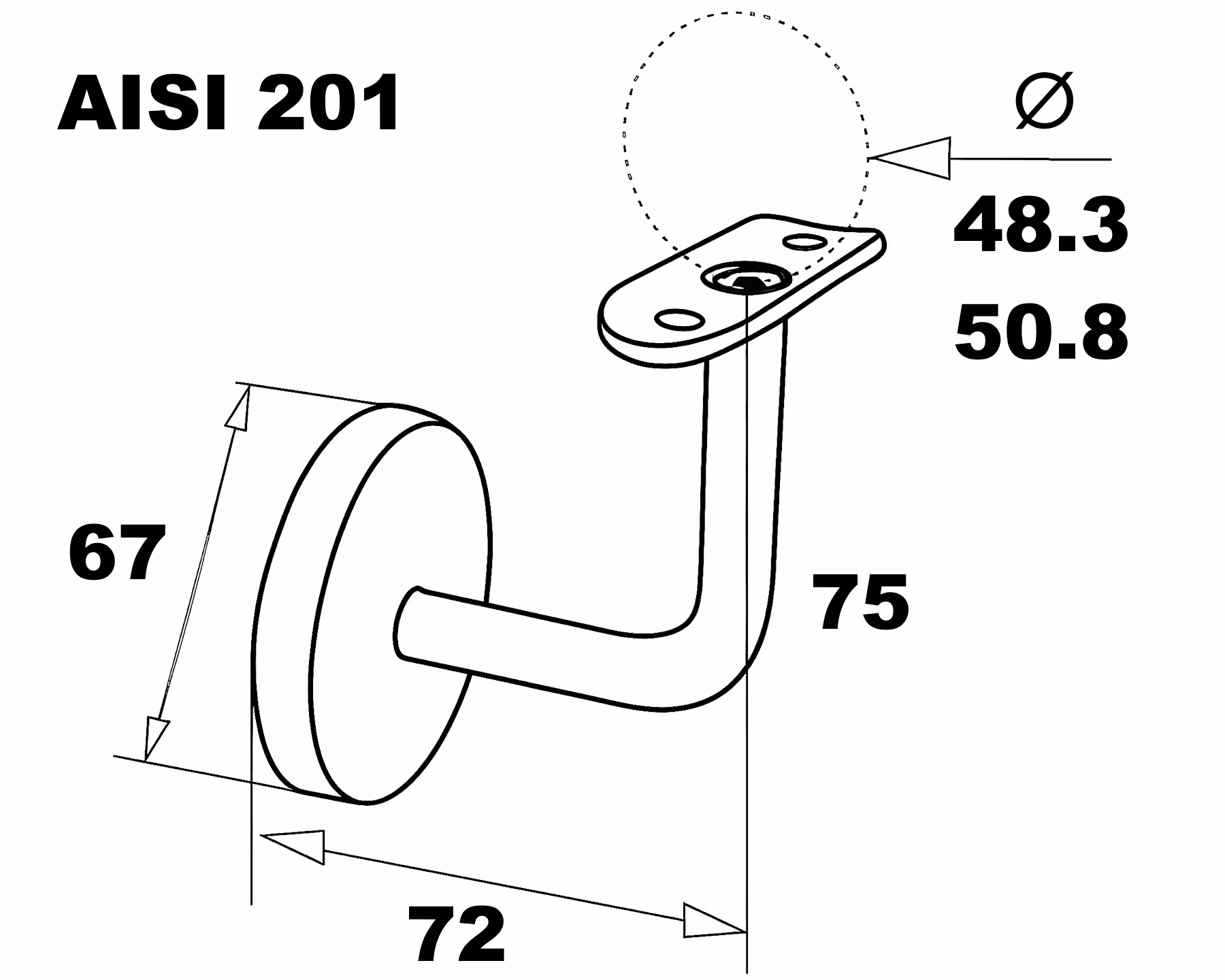

Dimensions:
Height, H (mm): 75
Length, L (mm): 72
External surface treatment:
Surface / mirror polished, glossy / : 600 GRIT
Color: chrome
Pattern: mirror
Material of manufacture:
Metal type: stainless steel
Steel grade: AISI 201
Steel Grade Analog: EN 1.4372
Design features:
Type of connection with pipe: for welding or self-tapping screws
Connection of parts: combined
Number of parts: 4
1. Saddle / attached to the holder rod with a hex bolt (included) and a 4 mm hex key (not included). The position of the bracket can be adjusted / : length 59 mm ▸ width 25 mm ▸ thickness 3.5 mm ▸ number of countersunk holes for mounting: 2 ▸ diameter of mounting holes ∅ 5 mm ▸ distance between hole centers 42 mm;
2. Holder rod (base) / a curved cylindrical part that is connected to the saddle at one end with a bolt and attached to the flange at the other end by welding / : bend angle 90° ▸ outer diameter ∅ 16 mm ▸ height 75 mm ▸ length 72 mm;
3. Flange / a disk-shaped part that is welded to the rod, is attached to a flat surface with self-tapping screws, bolts, or wall plugs (not included) / : outer diameter ∅ 64 mm ▸ thickness 3 mm ▸ number of countersunk holes for mounting: 3 ▸ diameter of mounting holes ∅ 6 mm;
4. Cover / a decorative cup (cover) that conceals and hides the flange and fasteners / : outer diameter ∅ 67 mm ▸ height 8 mm ▸ thickness 1 mm;
Operating temperature range
Max. continuous operating temperature: +400°C
Max. intermittent temperature: +550°C
Min. continuous operating temperature: -40°C
Thermal cycling resistance: moderate
Intended Use & Application
Application Areas: wall-mounted handrail
Recommended Environment: office and retail centers, for low humidity interiors, for moderate (non-aggressive) environments, educational institutions, medical institutions, clinics, train stations, public places, home
Usage Restrictions: do not use in environments with constant high humidity, for secure structural fastening and personal safety — the minimum recommended number of supports (brackets) for a 2000 mm long handrail is 3 units, ▸screws, bolts, or anchors (not included in the set) — must be made exclusively of corrosion-resistant stainless steel
Maintenance recommendations
Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge
⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes
Additional information:
Order Step (pcs): 1
Product condition: new
Packaging: pellicle
Product Type: handrail holder (handrail bracket)
Country of Origin: China

Description Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 201

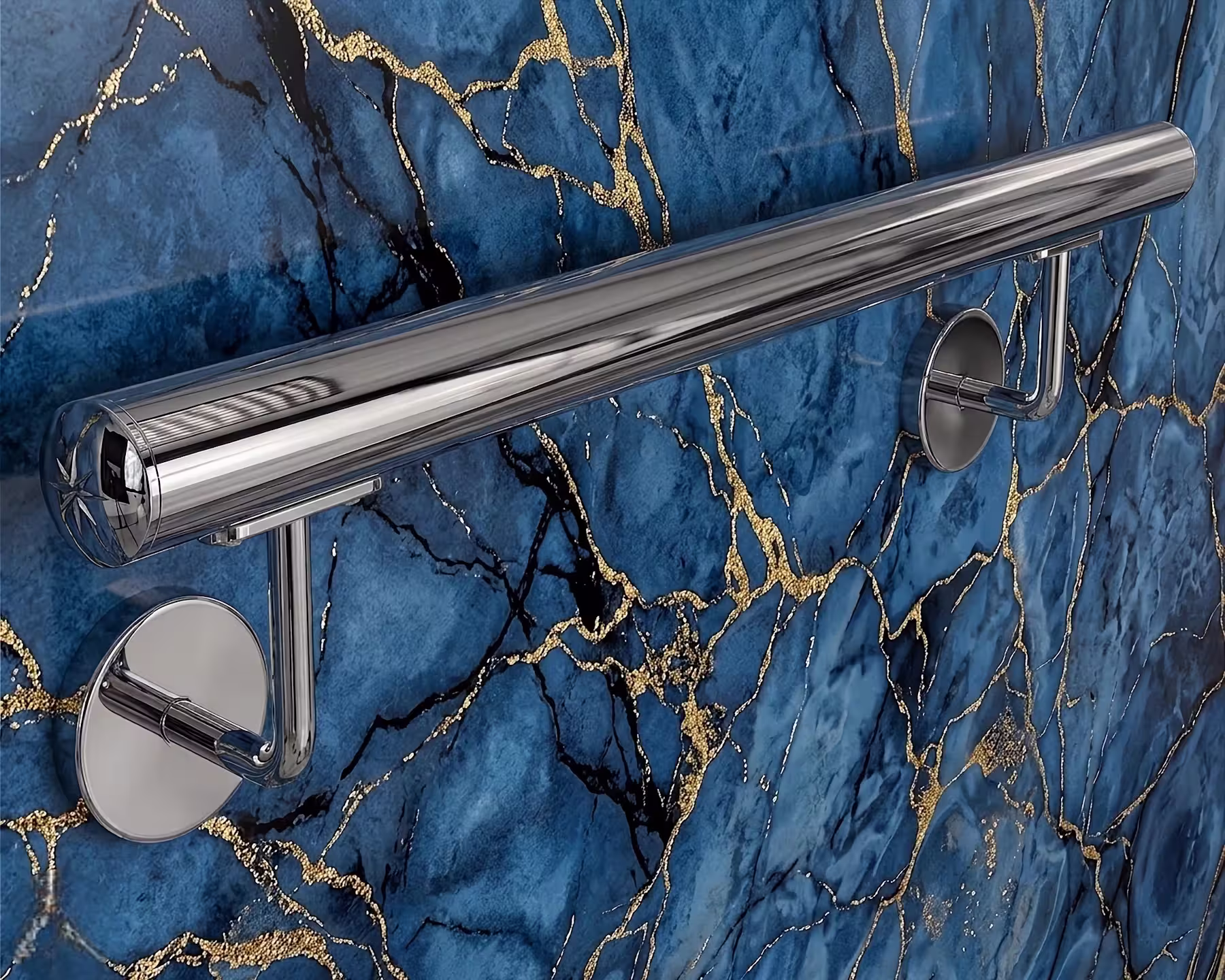

A stainless steel handrail holder is a key element that combines safety and aesthetics in your design. If you value a glossy shine and reliable fastening for large diameter railings, this model is made for you.

The ideal choice for large diameters

This universal holder is specially designed to work with the most popular pipe sizes used in commercial and private projects: 48.3 mm and 50.8 mm (50, 51 mm). This compatibility makes it indispensable for mounting sturdy and massive handrails.

The surface of the product is processed to the 600 GRIT standard, achieving mirror-polished perfection. This ensures maximum light reflection, creating a "chrome" effect and visually expanding the space.

Strength, proven by the AISI 201 standard

Made of AISI 201 steel grade, this holder guarantees balanced corrosion resistance in moderately aggressive environments. It is an excellent solution for internal stairs, balcony railings, terraces, and other structures where reliability and an attractive appearance at an optimal price are important.

Design, thought out for professionals

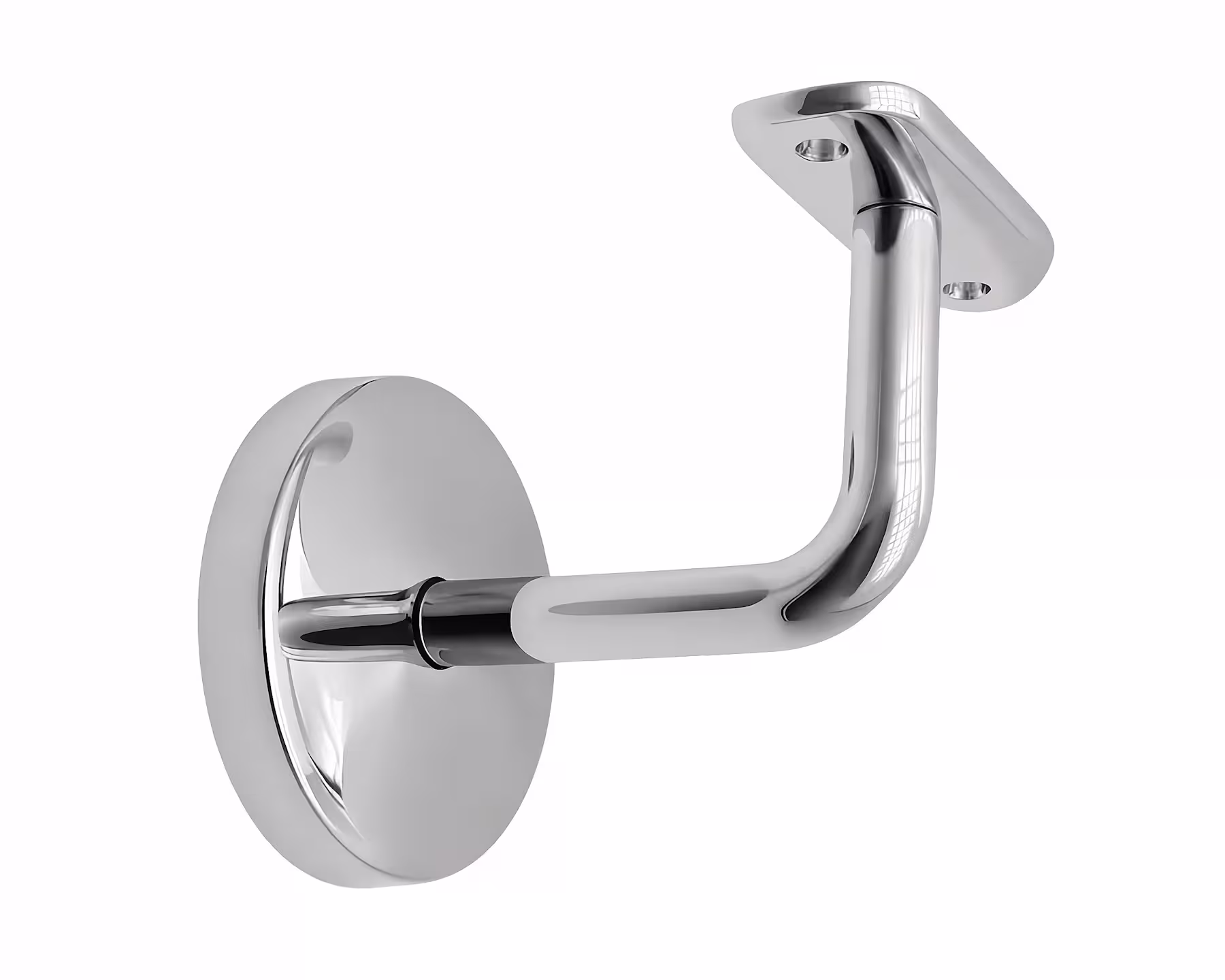

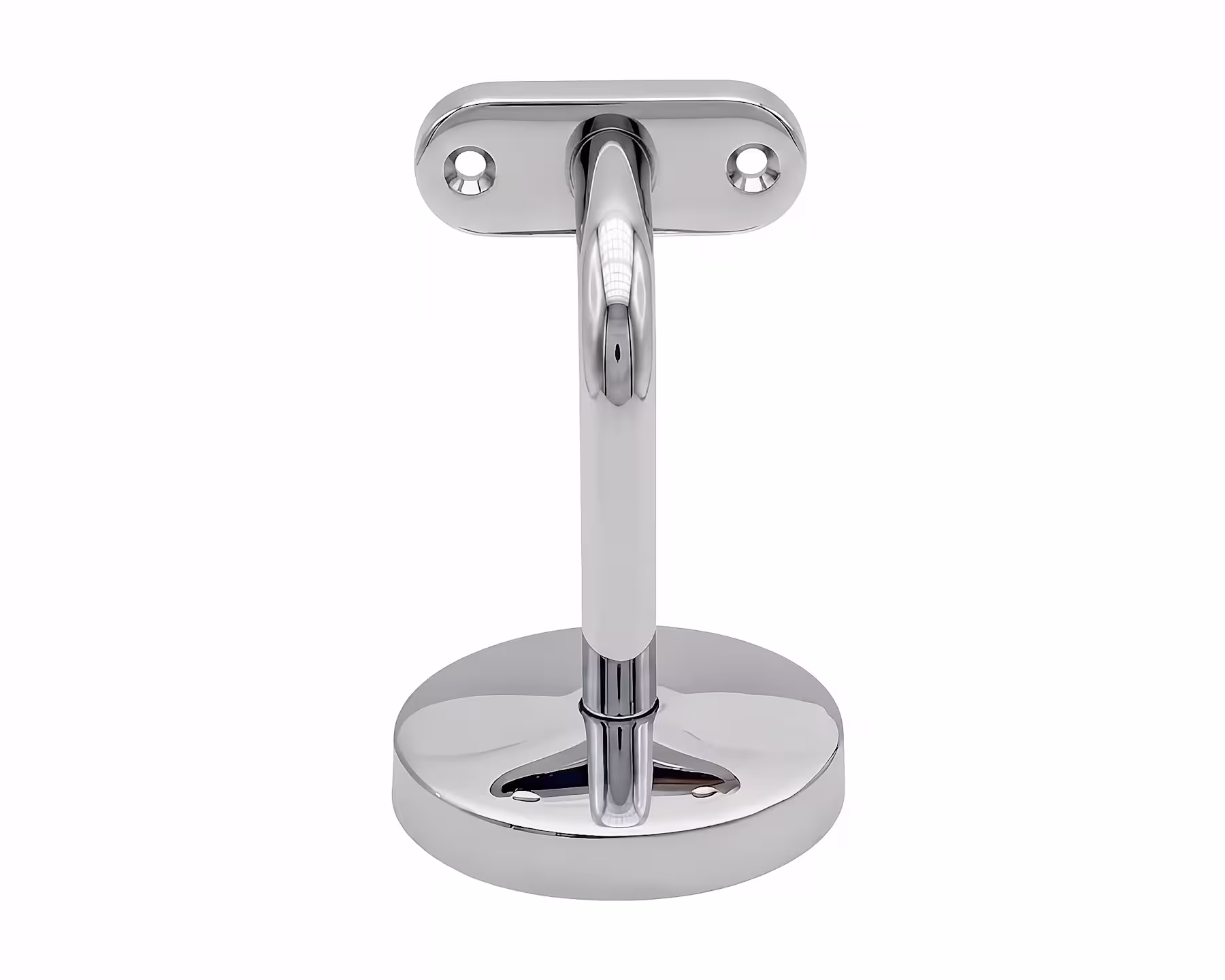

The holder has a combined four-component structure, allowing it to be quickly adapted to any mounting conditions:

  1. Adjustable saddle in one plane: the direction of the handrail mounting can be precisely adjusted thanks to the hex bolt fixation.
  2. Reliable flange: the welded flange with three holes ensures monolithic fastening to the wall or flat surface using self-tapping screws or wall plugs.
  3. Decorative element: a mirror cover (cup) hides the connection point and fasteners, providing a clean and finished aesthetic look.

Choose the Ukirs holder to ensure your railings have durability, safety, and exquisite shine.

Only at Ukirs can you buy the highest quality stainless steel handrail holder for round pipes ∅ 48.3, 50.8 mm 600 GRIT AISI 201 at the most favorable price with delivery throughout Ukraine!
