Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 304 (Product code: 9009)

Views: 7030 | Rating:
• Manufacturer: Vinmay
• Manufacturer code: TP304F48.3-50.8
• UCGFEA: 7308 90 98 00
Grade:

High corrosion resistance. Food-grade, non-magnetic - more details...

Prices
from 50 pcs. 244 грн. / pcs.
Updated:
Available
Quantity in stock: 286
Price: 252 грн. / pcs.
plus shipping
Qty:
pcs.

Characteristics Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 304

Actual weight: 0.25 Kg / pcs.

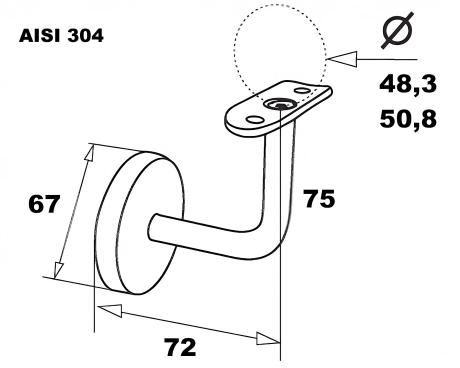

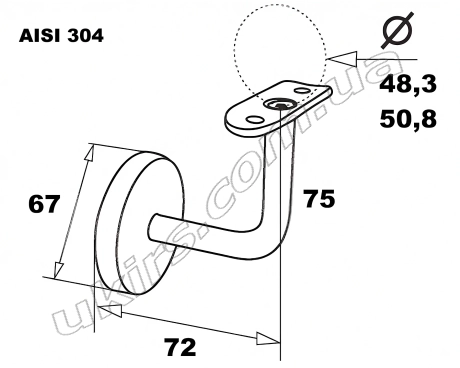

Dimensions:
Height, H (mm): 75
Length, L (mm): 72
External surface treatment:
Surface / mirror polished, glossy / : 600 GRIT
Color: chrome
Pattern: mirror
Material of manufacture:
Metal type: food-grade stainless steel
Steel grade: AISI 304
Steel Grade Analog: EN 1.4301

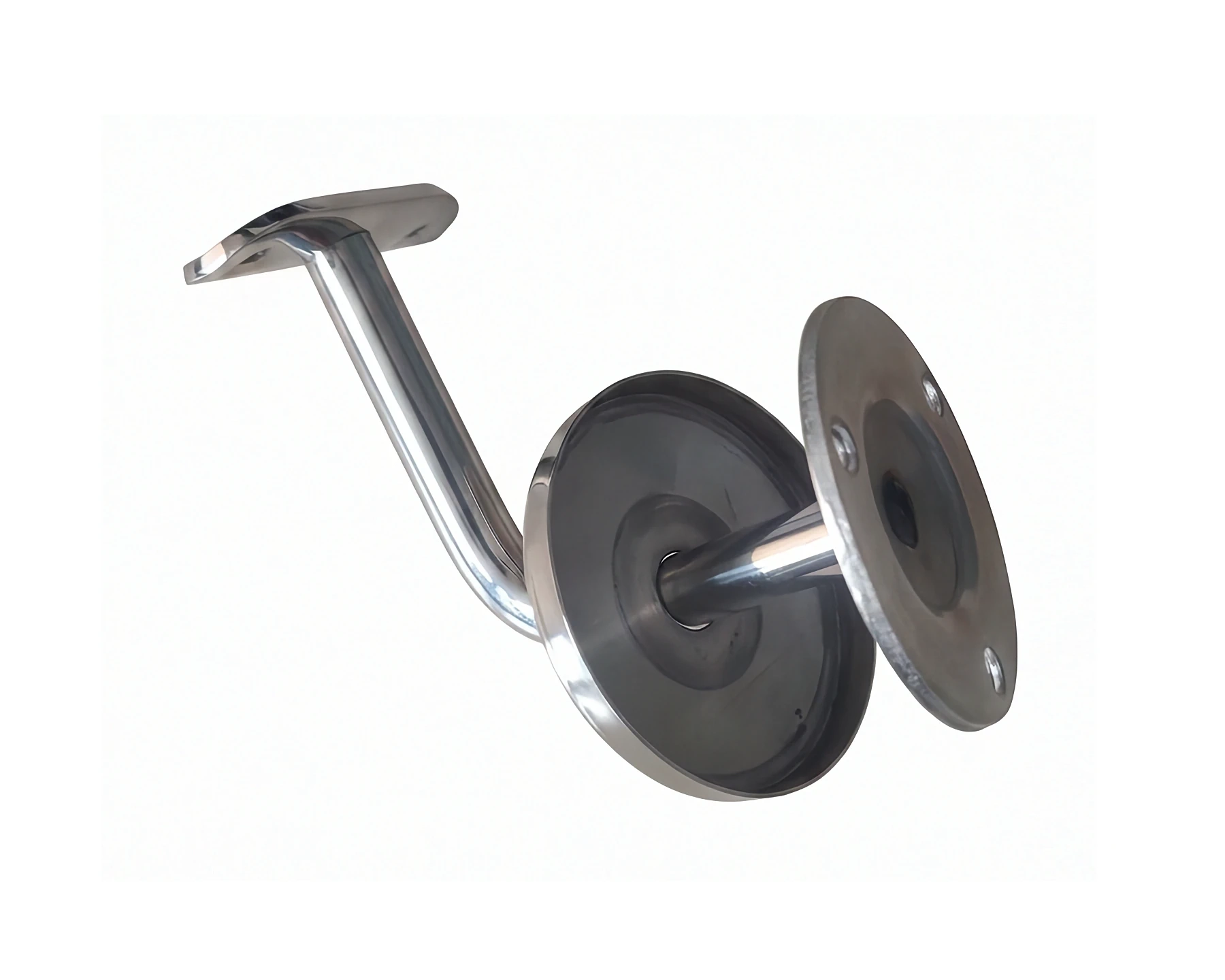

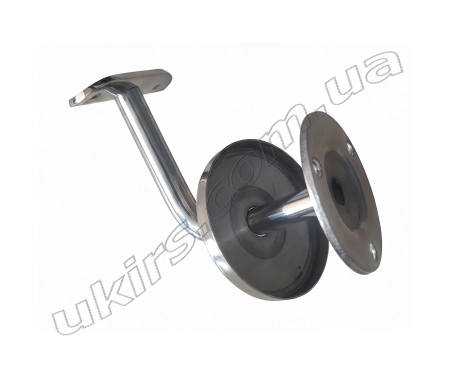

Design features:
Type of connection with pipe: for welding or self-tapping screws
Connection of parts: combined
Number of parts: 4
1. Saddle / attached to the holder rod with a hex bolt (included) and a 4 mm hex key (not included). The position of the bracket can be adjusted / : length 59 mm ▸ width 25 mm ▸ thickness 3.5 mm ▸ number of countersunk holes for mounting: 2 ▸ diameter of mounting holes ∅ 5 mm ▸ distance between hole centers 42 mm;
2. Holder rod (base) / a curved cylindrical part that is connected to the saddle at one end with a bolt and attached to the flange at the other end by welding / : bend angle 90° ▸ outer diameter ∅ 16 mm ▸ height 75 mm ▸ length 72 mm;
3. Flange / a disk-shaped part that is welded to the rod, is attached to a flat surface with self-tapping screws, bolts, or wall plugs (not included) / : outer diameter ∅ 64 mm ▸ thickness 3 mm ▸ number of countersunk holes for mounting: 3 ▸ diameter of mounting holes ∅ 6 mm;
4. Cover / a decorative cup (cover) that conceals and hides the flange and fasteners / : outer diameter ∅ 67 mm ▸ height 8 mm ▸ thickness 1 mm;
Operating temperature range
Max. continuous operating temperature: +600°C
Max. intermittent temperature: +850°C
Min. continuous operating temperature: -196°C
Thermal cycling resistance: high
Intended Use & Application
Application Areas: wall-mounted handrail
Recommended Environment: street (temperate climate), coastal areas, swimming pools, saunas, bathrooms, bathroom, educational institutions, medical institutions, clinics, train stations, public places, home
Usage Restrictions: for secure structural fastening and personal safety — the minimum recommended number of supports (brackets) for a 2000 mm long handrail is 3 units, ▸screws, bolts, or anchors (not included in the set) — must be made exclusively of corrosion-resistant stainless steel
Maintenance recommendations
Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge
⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes
Additional information:
Order Step (pcs): 1
Product condition: new
Packaging: pellicle
Product Type: handrail holder (handrail bracket)
Country of Origin: China

Description Stainless steel handrail holder for round pipe ∅ 48.3 / ∅ 50.8 mm 600 GRIT AISI 304

This handrail holder is the embodiment of reliability and impeccable style. Created for the most demanding operating conditions, it ensures a strong and durable mounting of railings without sacrificing design elegance.

Maximum stability thanks to AISI 304

We use high-quality AISI 304 stainless steel - the so-called "food-grade" type, which guarantees exceptional resistance to corrosion and aggressive environments. This makes it an ideal choice not only for interiors but also for objects with high humidity or direct interaction with water: pools, saunas, terraces, and outdoor railings.

600 GRIT mirror finish

The holder's surface is processed to a 600 GRIT mirror polish. This finish gives the product a deep, chrome-like shine that visually enriches any structure. The mirror surface also ensures easy cleaning and resistance to stains and tarnishing.

Universal fastening for large pipes

The holder is universally suitable for large diameter round pipes: 48.3 mm and 50.8 mm (or 50/51 mm). Thanks to the thoughtful four-component design, installation is maximally flexible:

  1. Reliable fixation: the holder can be attached to the pipe using self-tapping screws through the seating or welding for absolute monolithicity.
  2. Simple wall mounting: the welded flange with three holes is quickly attached to a flat surface.
  3. Aesthetic finish: the decorative cover elegantly conceals all fastening elements, providing a clean and finished appearance.

Choose the Ukirs AISI 304 holder to invest in the safety, durability, and impeccable design of your space.

Only at Ukirs can you buy the highest quality stainless steel handrail holder for round pipes ∅ 48.3, 50.8 mm 600 GRIT AISI 304 at the most favorable price with delivery throughout Ukraine!
