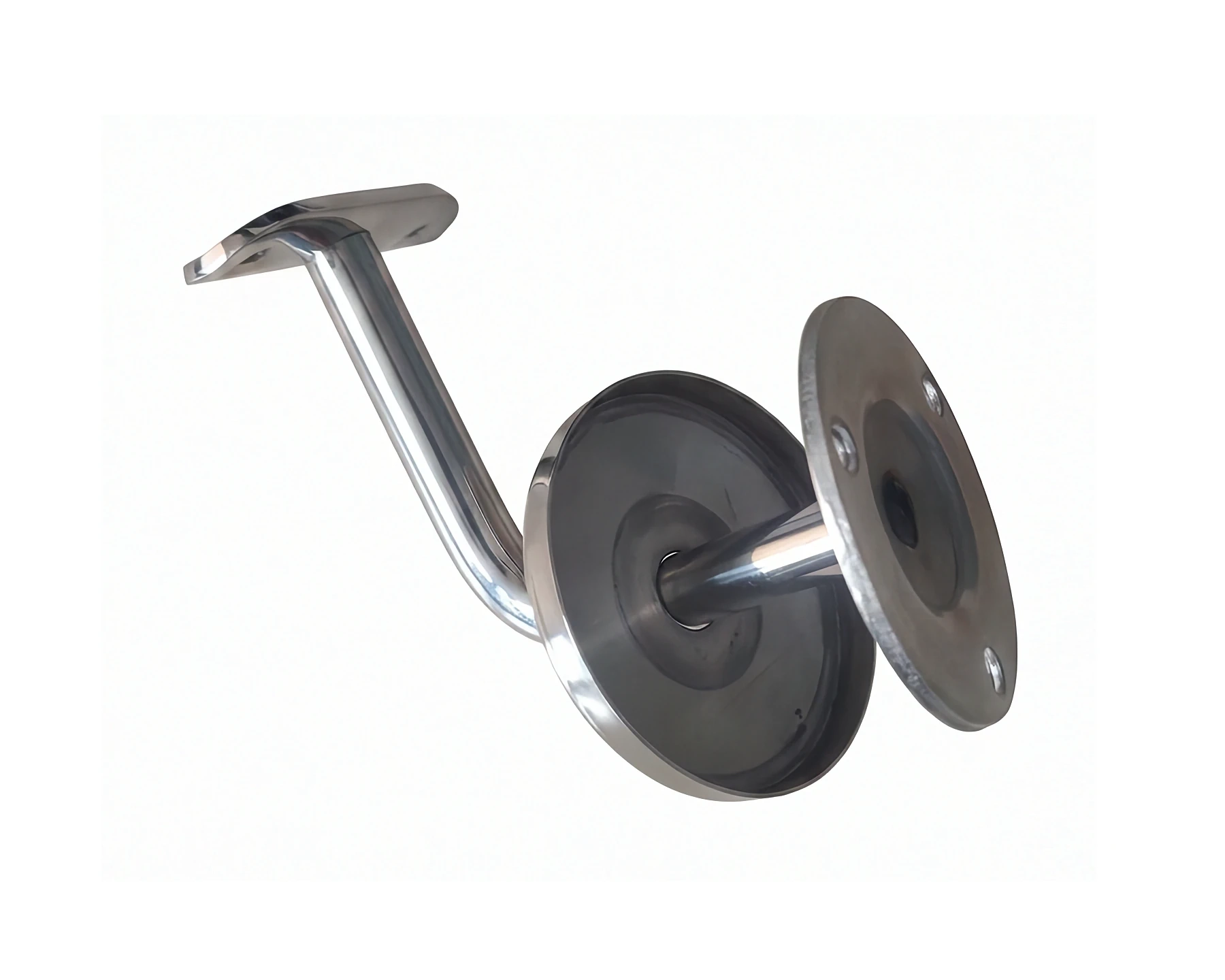

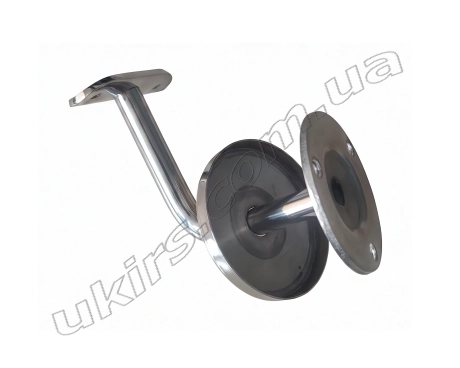

Stainless steel handrail holder for round pipe ∅38 / ∅40 / ∅42.4 mm 600 GRIT AISI 304 (Product code: 9003)

Name: Stainless steel handrail holder for round pipe ∅38 / ∅40 / ∅42.4 mm 600 GRIT AISI 304
Brand: Vinmay
SKU: 9003
Price: 252 UAH
Availability: InStock
Rating: 10.00 (2 reviews)

Views:

9912

Rating:

• Manufacturer: Vinmay •

• Manufacturer code: TP304F38-40-42.4 •

• UCGFEA: 7308 90 98 00 •

Grade:

High corrosion resistance. Food-grade, non-magnetic - more details...

Prices

from 50 pcs.

244 грн. / pcs.

Updated: Wednesday, 29 April 2026

Available

Quantity in stock: 261

Price: 252 грн. / pcs.

plus shipping

Qty:

pcs.

Characteristics Stainless steel handrail holder for round pipe ∅38 / ∅40 / ∅42.4 mm 600 GRIT AISI 304

Actual weight: 0.25 Kg / pcs.

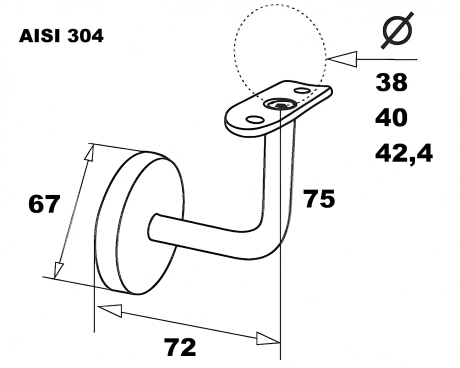

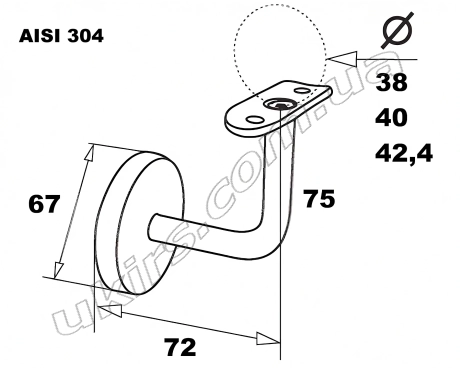

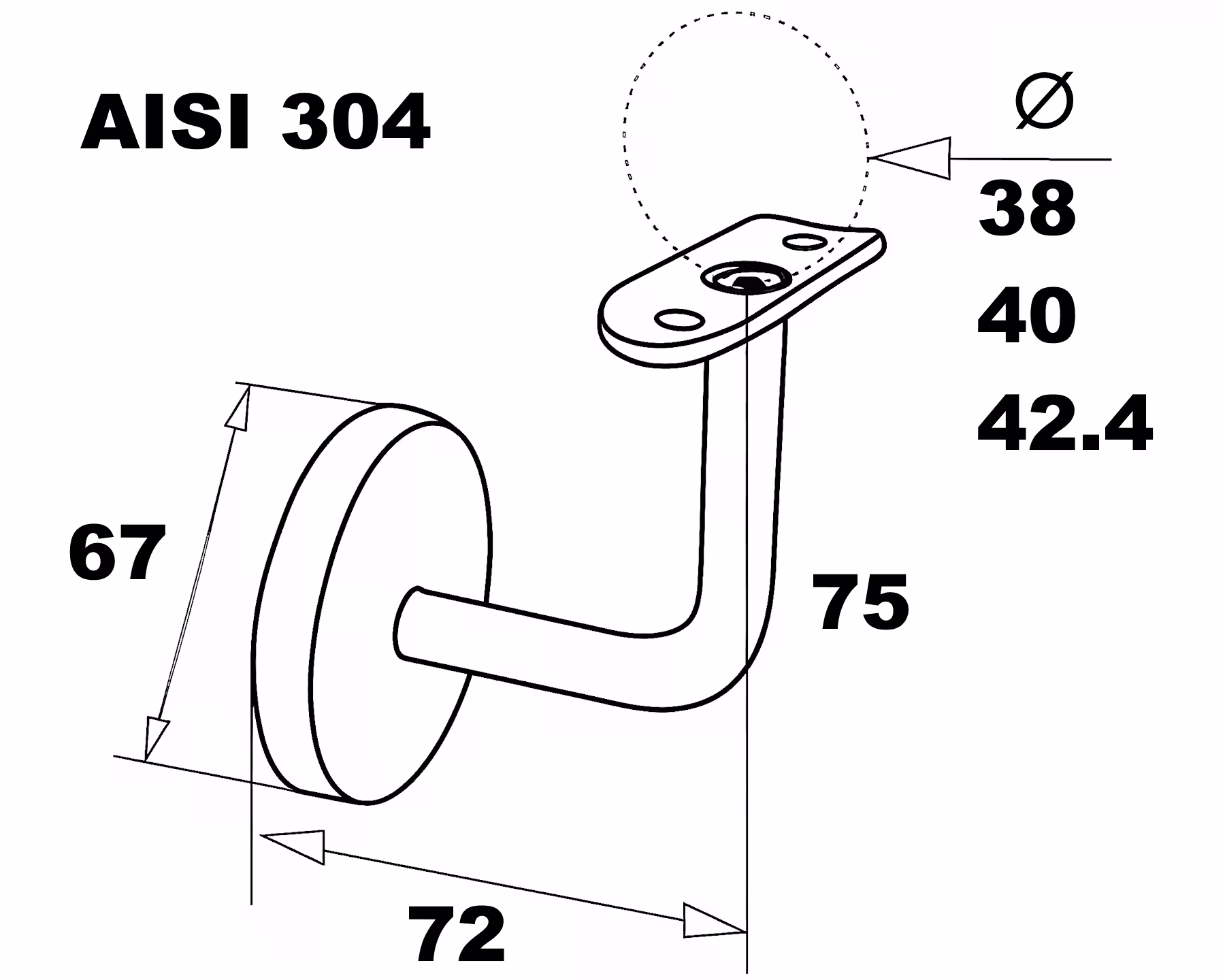

Dimensions:

Height, H (mm): 75

Length, L (mm): 72

External surface treatment:

Surface / mirror polished, glossy / : 600 GRIT

Color: chrome

Pattern: mirror

Material of manufacture:

Metal type: food-grade stainless steel

Steel grade: AISI 304

Steel Grade Analog: EN 1.4301

Design features:

Type of connection with pipe: for welding or self-tapping screws

Connection of parts: combined

Number of parts: 4

1. Saddle / attached to the holder rod with a hex bolt (included) and a 4 mm hex key (not included). The position of the bracket can be adjusted / : length 59 mm ▸ width 25 mm ▸ thickness 3.5 mm ▸ number of countersunk holes for mounting: 2 ▸ diameter of mounting holes ∅ 5 mm ▸ distance between hole centers 42 mm;

2. Holder rod (base) / a curved cylindrical part that is connected to the saddle at one end with a bolt and attached to the flange at the other end by welding / : bend angle 90° ▸ outer diameter ∅ 16 mm ▸ height 75 mm ▸ length 72 mm;

3. Flange / a disk-shaped part that is welded to the rod, is attached to a flat surface with self-tapping screws, bolts, or wall plugs (not included) / : outer diameter ∅ 64 mm ▸ thickness 3 mm ▸ number of countersunk holes for mounting: 3 ▸ diameter of mounting holes ∅ 6 mm;

4. Cover / a decorative cup (cover) that conceals and hides the flange and fasteners / : outer diameter ∅ 67 mm ▸ height 8 mm ▸ thickness 1 mm;

Operating temperature range

Max. continuous operating temperature: +600°C

Max. intermittent temperature: +850°C

Min. continuous operating temperature: -196°C

Thermal cycling resistance: high

Intended Use & Application

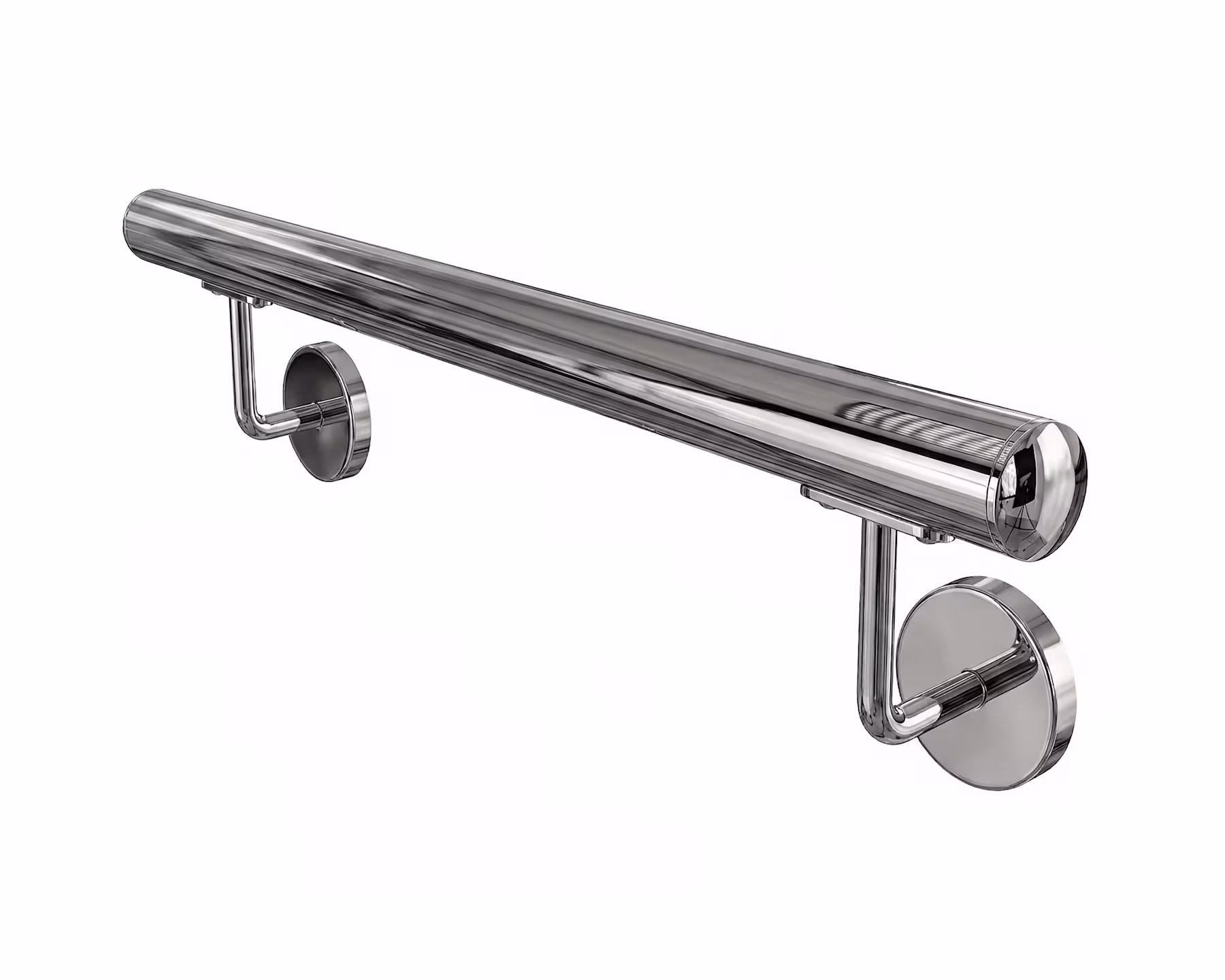

Application Areas: wall-mounted handrail

Recommended Environment: street (temperate climate), coastal areas, swimming pools, saunas, bathrooms, bathroom, educational institutions, medical institutions, clinics, train stations, public places, home

Usage Restrictions: for secure structural fastening and personal safety — the minimum recommended number of supports (brackets) for a 2000 mm long handrail is 3 units, ▸screws, bolts, or anchors (not included in the set) — must be made exclusively of corrosion-resistant stainless steel

Maintenance recommendations

Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge

⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes

Additional information:

Order Step (pcs): 1

Product condition: new

Packaging: pellicle

Product Type: handrail holder (handrail bracket)

Country of Origin: China

Description Stainless steel handrail holder for round pipe ∅38 / ∅40 / ∅42.4 mm 600 GRIT AISI 304

Looking for a reliable and aesthetically perfect solution for mounting railings? This handrail holder, made of high-quality AISI 304 stainless steel, is exactly what you need. This steel grade is known for its exceptional corrosion resistance and durability, making it ideal for use both indoors and outdoors, even in relatively aggressive environments.

Thanks to its universal design, the holder is compatible with three of the most popular pipe diameters: 38, 40, and 42.4 mm. This gives you flexibility in choosing the handrail material without limiting your project's design.

Why choose this handrail bracket?

Reliability and strength: made of four main parts, the holder guarantees a stable and secure attachment for the handrail.
Mirror polish: the surface finish using 600 GRIT technology gives the product a flawless, mirror-like shine, adding elegance and modernity to your interior.
Easy installation: the saddle allows you to adjust the direction of the handrail in one plane, and the holder itself is easily attached to the wall using standard fasteners.
Corrosion resistance: the AISI 304 steel grade provides high rust resistance, making it an ideal choice for use in damp environments like swimming pools or bathrooms, as well as outdoors.
Professional appearance: all fastening elements are skillfully hidden under an elegant decorative cup, leaving only a perfectly smooth surface.

Choose a handrail holder from Ukirs - it's an investment in the quality, safety, and flawless appearance of your railings.

Only at Ukirs can you buy the highest quality stainless steel handrail holder for round pipes ∅ 38, 40, 42.4 mm 600 GRIT AISI 304 at the most favorable price with delivery throughout Ukraine!
