Name: Stainless steel elbow ∅ 16 mm 400 GRIT AISI 201
Brand: Vinmay
SKU: 5002
Price: 33 UAH
Availability: InStock
Rating: 8.00 (4 reviews)

• Manufacturer: Vinmay •

• Manufacturer code: O201F16-1.5 •

• UCGFEA: 7307 23 10 00 •

Grade:

Medium corrosion resistance, non-magnetic - more details...

Wall:

The wall thickness of the product is 1.5 mm.

Prices

100 pcs.	-	500 pcs.	32 грн. / pcs.
from 500 pcs.			31 грн. / pcs.

Updated: Wednesday, 29 April 2026

Available

Quantity in stock: 363

Price: 33 грн. / pcs.

plus shipping

Qty:

pcs.

Characteristics Stainless steel elbow ∅ 16 mm 400 GRIT AISI 201

Actual weight: 0.025 Kg / pcs.

Dimensions:

Bend angle, α (°): 90°

Bend radius, R (mm): 27.0

Arc length, l (mm): 55

Outer diameter ∅, D (mm): 16

Inner diameter ∅, d (mm): 13

Wall thickness, S (mm): 1.5

Manufacturing standards:

Type / by manufacturing method / : welded

External surface treatment:

Surface / mirror polished, glossy / : 400 GRIT

Color: chrome

Pattern: mirror

Material of manufacture:

Metal type: stainless steel

Steel grade: AISI 201

Steel Grade Analog: EN 1.4372

Design features:

Connection method / with a pipe / : welding (welded)

Construction Type: structural (not for pressurized systems)

Operating temperature range

Max. continuous operating temperature: +400°C

Max. intermittent temperature: +550°C

Min. continuous operating temperature: -40°C

Thermal cycling resistance: moderate

Intended Use & Application

Application Areas: changing the direction of stainless steel tubes in railings, handrails, fences, and others, creating corner joints in furniture frames and decorative structures

Recommended Environment: office and retail centers, for low humidity interiors, for moderate (non-aggressive) environments, educational institutions, medical institutions, clinics, train stations, public places, home

Usage Restrictions: not for high-pressure systems, do not use in environments with constant high humidity

Maintenance recommendations

Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge

⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes

Additional information:

Order Step (pcs): 1

Product condition: new

Packaging: pellicle

Product Type: stainless steel elbow

Country of Origin: China

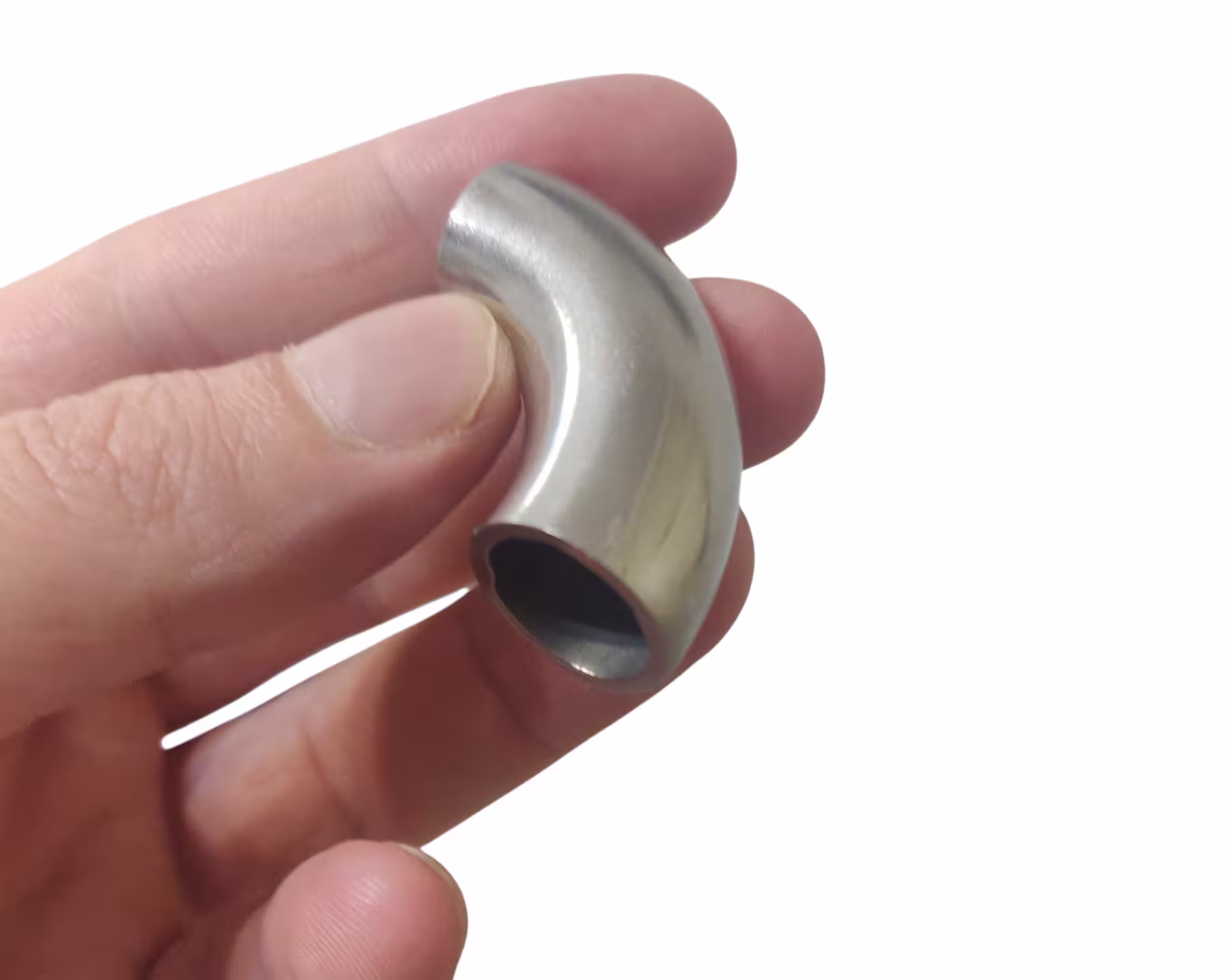

This is a special fitting (elbow, turn, corner) made of AISI 201 stainless steel, which is used to change the direction of a pipeline or other stainless pipe structure at an angle of 90 degrees. It has an outer diameter of 16 mm and a wall thickness of 1.5 mm. Its inner diameter = 13 mm. The outer surface is polished to a mirror finish (400 GRIT). AISI 201 is a stainless steel grade that is characterized by average corrosion resistance, good weldability and relatively low cost compared to other stainless steel grades. However, it has lower corrosion resistance and lower resistance to high temperatures than, for example, AISI 304.

Stainless steel elbow ∅ 16x1.5 mm 400 GRIT AISI 201 is a universal fitting that will find its application in various industries. Its corrosion resistance, attractive appearance and affordable price make it a popular choice for many consumers.

Only at Ukirs you can buy stainless steel elbow ∅ 16x1.5 mm 400 GRIT AISI 201 of the highest quality at the most favorable price with delivery across Ukraine!
