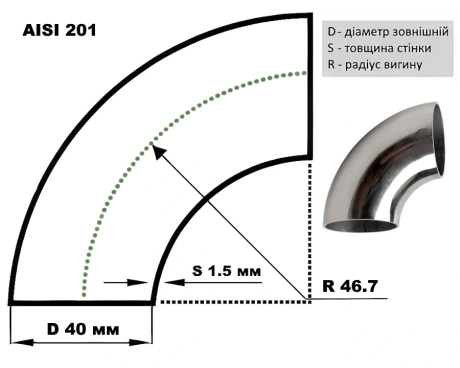

Stainless steel elbow 40 mm
A stainless steel elbow ∅ 40 mm 400 GRIT is a high-quality component for piping systems, combining strength, exceptional corrosion resistance, and a perfectly smooth surface. This product is an indispensable element for changing the direction of the flow of the working medium (liquids, gases, steam) at a specific angle, making it crucial in many industries.
Diameter (∅): 40 mm. This size is a common standard and is widely used in medium-diameter systems, particularly in the food, dairy, chemical, and pharmaceutical industries.
Steel Grade: elbows with this marking are made from universal grades of stainless steel, each with its own characteristics:
AISI 201: this is an economical alternative to 300-series steels. It contains less nickel, partially replaced by manganese and nitrogen, which makes it more affordable. AISI 201 has high strength and good formability but is less resistant to corrosion in aggressive environments with a high content of chlorides. It is ideal for decorative elements, the furniture industry, and internal systems where there is no risk of exposure to aggressive substances.
AISI 304: one of the most popular grades. It has excellent corrosion resistance in most environments and is easily welded. It is an ideal choice for the food, dairy, and pharmaceutical industries, as well as for general industrial applications.
AISI 316: this grade contains molybdenum, which significantly increases its resistance to aggressive environments, especially chlorides and acids. It is chosen for the chemical, marine, and oil and gas industries, where operating conditions are the most demanding.
Wall thickness: the wall thickness can vary, but it is usually between 1.5 mm and 2 mm, which provides an optimal balance between strength, weight, and the ability to withstand working pressure.
Surface Finish: 400 GRIT. This designation indicates a high degree of polishing, which gives the product a mirror-like or near-mirror finish.
Aesthetics: ideal for visible parts of structures where an attractive appearance is important (e.g., handrails, decorative elements).
Hygiene: the exceptionally smooth surface prevents the accumulation of dirt and bacteria, which is critically important in the food and pharmaceutical industries. This surface is easy to clean and sanitize.
Elbow type: as a rule, it is a seamed / welded elbow, made from stainless steel pipe. It is formed from a sheet or blank with subsequent welding of the seam, ensuring high strength and hermetic sealing of the joint.
When choosing a stainless steel elbow ∅ 40 mm 400 GRIT, be sure to consider the steel grade based on the operating conditions. If you are working with aggressive environments or saltwater, it is better to choose AISI 316. For most other applications, AISI 304 or AISI 201 will be excellent choices.
Ukirs offers you the opportunity to buy a stainless steel elbow 40 mm of the highest quality with delivery throughout Ukraine at the best and most favorable price!
