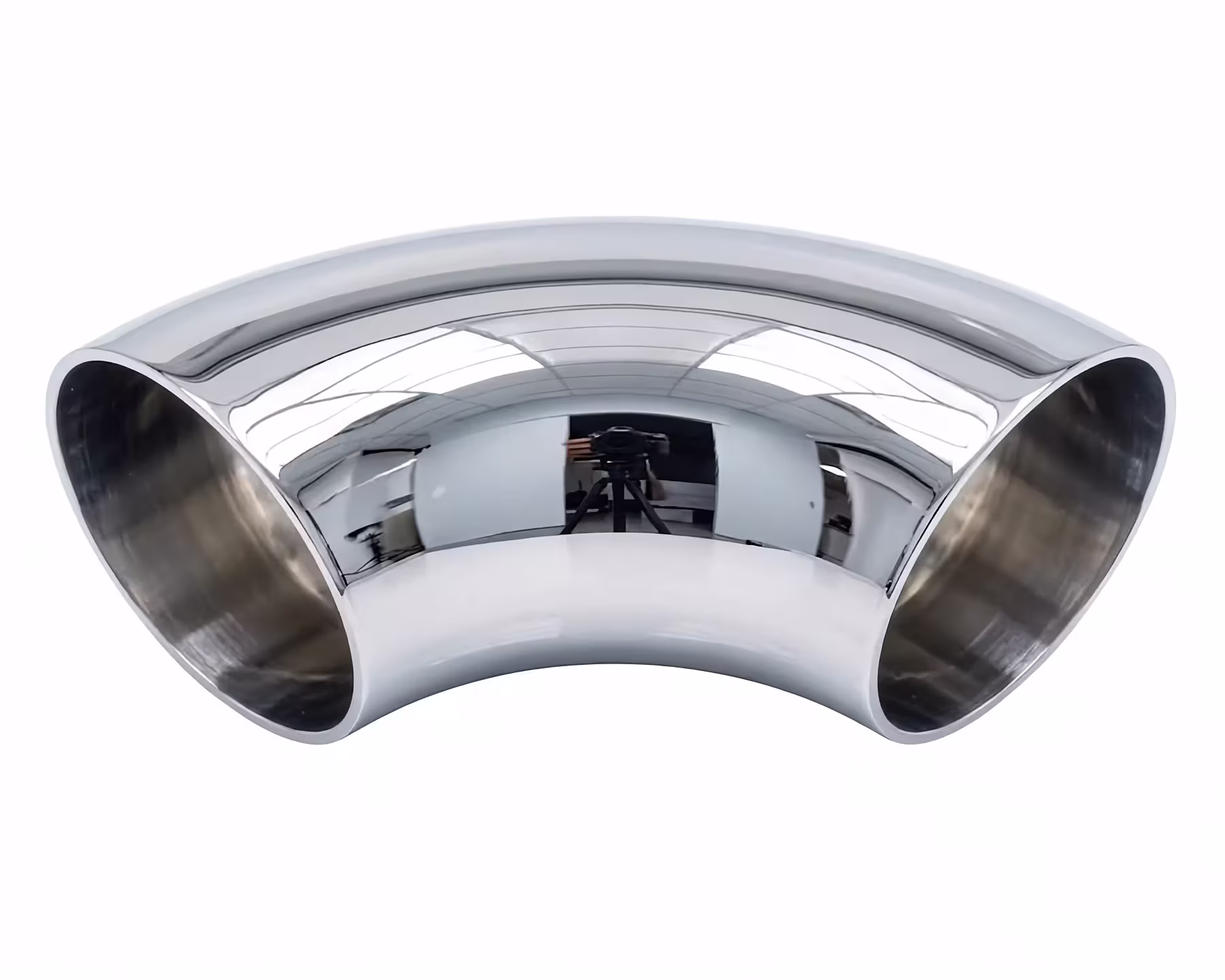

Stainless steel elbow ∅ 60.3x1.5 mm 400 GRIT AISI 201 (Product code: 5033)

Views: 7270 | Rating:
• Manufacturer: Vinmay
• Manufacturer code: O201F60.3-1.5
• UCGFEA: 7307 23 10 00
Grade:

Medium corrosion resistance, non-magnetic - more details...

Wall:

The wall thickness of the product is 1.5 mm.

Prices
50 pcs. - 100 pcs. 124 грн. / pcs.
from 100 pcs. 123 грн. / pcs.
Updated:
Available
Quantity in stock: 1015
Price: 127 грн. / pcs.
plus shipping
Qty:
pcs.

Characteristics Stainless steel elbow ∅ 60.3x1.5 mm 400 GRIT AISI 201

Actual weight: 0.23 Kg / pcs.
Dimensions:
Bend angle, α (°): 90°
Bend radius, R (mm): 71.8
Arc length, l (mm): 160
Outer diameter ∅, D (mm): 60.3
Inner diameter ∅, d (mm): 57.3
Wall thickness, S (mm): 1.5
Manufacturing standards:
Type / by manufacturing method / : welded
External surface treatment:
Surface / mirror polished, glossy / : 400 GRIT
Color: chrome
Pattern: mirror
Material of manufacture:
Metal type: stainless steel
Steel grade: AISI 201
Steel Grade Analog: EN 1.4372
Design features:
Connection method / with a pipe / : welding (welded)
Construction Type: structural (not for pressurized systems)
Operating temperature range
Max. continuous operating temperature: +400°C
Max. intermittent temperature: +550°C
Min. continuous operating temperature: -40°C
Thermal cycling resistance: moderate
Intended Use & Application
Application Areas: changing the direction of stainless steel tubes in railings, handrails, fences, and others, creating corner joints in furniture frames and decorative structures
Recommended Environment: office and retail centers, for low humidity interiors, for moderate (non-aggressive) environments, industrial workshops, educational institutions, medical institutions, clinics, train stations, public places, home
Usage Restrictions: not for high-pressure systems, do not use in environments with constant high humidity
Maintenance recommendations
Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge
⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes
Additional information:
Order Step (pcs): 1
Product condition: new
Packaging: pellicle
Product Type: stainless steel elbow
Country of Origin: China

Description Stainless steel elbow ∅ 60.3x1.5 mm 400 GRIT AISI 201

A stainless steel elbow with mirror polish ∅ 60.3x1.5 mm 400 GRIT AISI 201 is the ideal choice for creating reliable and aesthetically pleasing pipelines. It effectively changes the direction of fluid flow and is an indispensable element in both industrial and decorative constructions.

Features and benefits

  • Material: AISI 201. This is a cost-effective steel grade with high resistance to corrosion and mechanical damage. It is excellent for use in moderately aggressive environments and ensures the longevity of your system.
  • Diameter: ∅ 60.3 mm. This standard size ensures compatibility with pipes of a corresponding diameter, which simplifies installation.
  • Wall Thickness: 1.5 mm. An optimal thickness that guarantees the strength and reliability of the elbow, allowing it to withstand working pressure without deformation.
  • Surface: 400 GRIT. This designation indicates a high-quality mirror polish. Such a surface not only gives the product an elegant look but also makes it resistant to dirt and easy to maintain.

Areas of application

Thanks to its versatile properties, this elbow is widely used in:

  • Production lines: for the food, chemical, and pharmaceutical industries, where hygiene and corrosion resistance are important.
  • Construction: for creating water supply and ventilation systems, as well as for manufacturing handrails, railings, and fences.
  • Automotive industry: for elements of exhaust systems and tuning.

The ∅ 60.3x1.5 mm 400 GRIT AISI 201 stainless steel elbow is a profitable investment that combines an affordable price, reliability, and an excellent appearance.

Only at Ukirs you can buy stainless steel elbow ∅ 60.3x1.5 mm 400 GRIT AISI 201 of the highest quality at the most favorable price with delivery across Ukraine!
