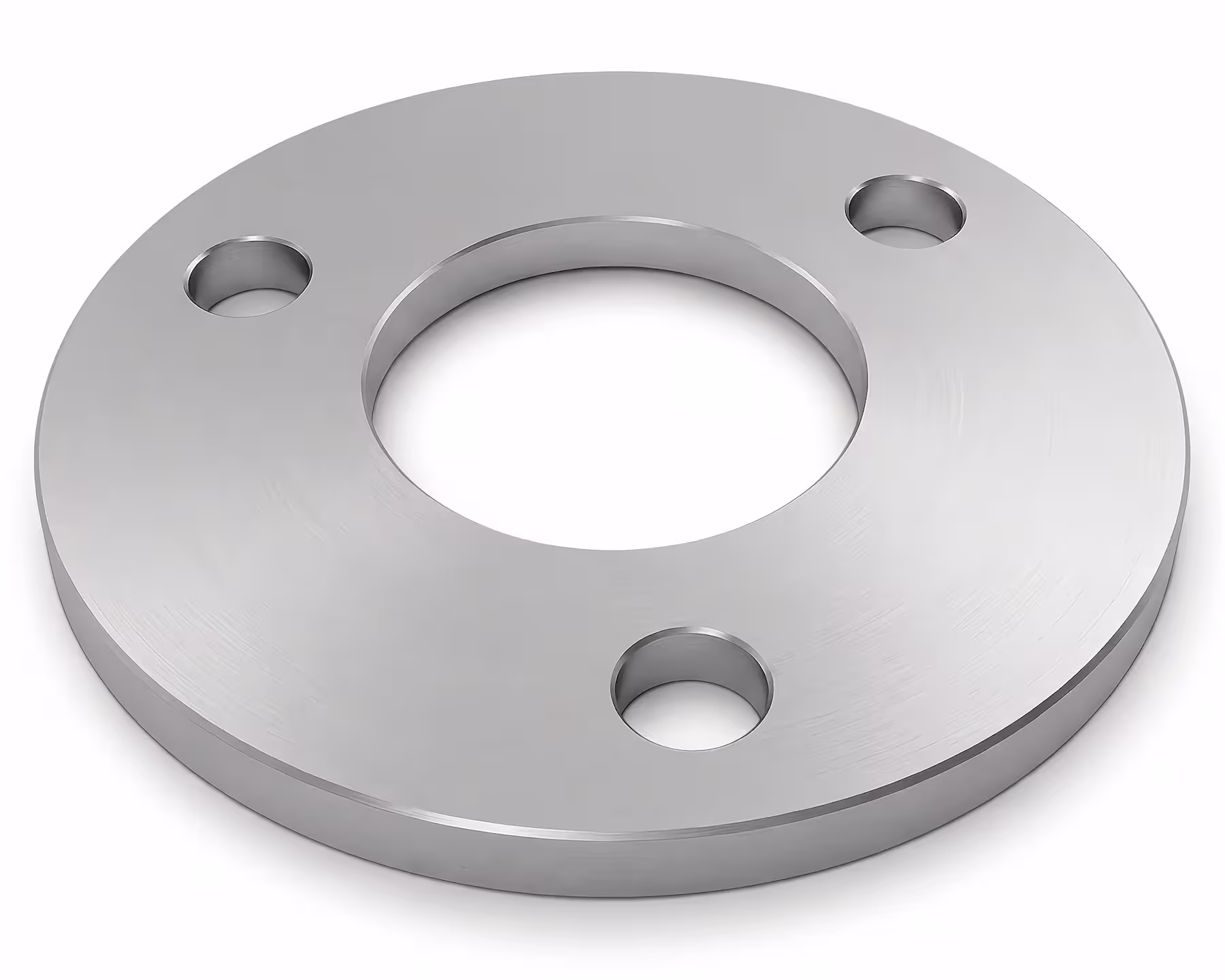

Stainless steel flange for ∅ 50.8 (85) mm pipe AISI 304 (Product code: 7012)

Name: Stainless steel flange for ∅ 50.8 (85) mm pipe AISI 304
Brand: Vinmay
SKU: 7012
Price: 116 UAH
Availability: InStock
Rating: 10.00 (4 reviews)

Views:

6035

Rating:

• Manufacturer: Vinmay •

• Manufacturer code: F304F50.8.X85 •

• UCGFEA: 7308 90 59 00 •

Grade:

High corrosion resistance. Food-grade, non-magnetic - more details...

Prices

50 pcs.	-	100 pcs.	114 грн. / pcs.
from 100 pcs.			112 грн. / pcs.

Updated: Wednesday, 29 April 2026

Available

Quantity in stock: 89

Price: 116 грн. / pcs.

plus shipping

Qty:

pcs.

Characteristics Stainless steel flange for ∅ 50.8 (85) mm pipe AISI 304

Actual weight: 0.09 Kg / pcs.

Dimensions:

Thickness, S (mm): 3.5

Outer diameter ∅, D (mm): 85

Number of mounting holes, n (pcs.): 3

Mounting hole diameter ∅, dₕ (mm) / technical tolerance +0.5 mm / : 10

External surface treatment:

Surface: untreated

Color: light gray

Pattern: fogged mirror

Material of manufacture:

Metal type: food-grade stainless steel

Steel grade: AISI 304

Steel Grade Analog: EN 1.4301

Design features:

Type of connection with pipe: welding

Form: round

Operating temperature range

Max. continuous operating temperature: +600°C

Max. intermittent temperature: +850°C

Min. continuous operating temperature: -196°C

Thermal cycling resistance: high

Intended Use & Application

Application Areas: railings, barriers, posts, furniture frames, designed for rigid static mounting of round tubes and elbows to any solid surface (floors, walls, ceilings, pavements, asphalt, etc.), and as a durable base for railing posts, fences, and furniture frames

Recommended Environment: street (temperate climate), coastal areas, swimming pools, saunas, bathrooms, bathroom, industrial workshops, food blocks (auxiliary structures)

Usage Restrictions: do not use in highly aggressive environments, not intended for pressurized piping systems and does not provide for the use of gaskets to create airtight or leak-proof connections

Maintenance recommendations

Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge

⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes

Additional information:

Order Step (pcs): 1

Product condition: new

Product Type: stainless steel flange

Country of Origin: China

Description Stainless steel flange for ∅ 50.8 (85) mm pipe AISI 304

Are you creating systems where impeccable hygiene and maximum reliability are key requirements? Then you need a flat weld-on flange made of food-grade AISI 304 steel. This component, designed for pipes with a diameter of 50.8 mm, is an ideal solution for any connections where corrosion resistance and compliance with the highest sanitary standards are important.

Key features

High corrosion resistance: the flange is made of AISI 304 steel, which is the gold standard in the field of stainless steels. It is known for its exceptional resistance to corrosion in moderate and even aggressive environments. This makes it indispensable for the chemical, pharmaceutical, and, most importantly, food industries.
Hygiene: the AISI 304 steel grade is "food-grade" due to its inertness - it does not react with products, does not release harmful substances, and is easy to clean. This is critically important for enterprises where a high level of hygiene is maintained, such as breweries, dairy factories, and food production facilities.
Durable welded connection: the flange is designed for welding, which ensures the creation of an absolutely sealed and durable connection. This type of fixation withstands high loads and vibrations, guaranteeing the stability and safety of the system for many years.
Optimal dimensions: with a thickness of just 3.5 mm and an outer diameter of 85 mm, this flange ensures a precise fit to a ∅ 50.8 mm pipe. Its compact parameters allow it to be easily mounted in a confined space.

Area of application

This flange is an indispensable element for creating pipelines and metal structures in conditions where cleanliness and reliability are paramount. It is ideal for:

Pipelines in food production facilities.
Systems in the chemical and pharmaceutical industries.
Structures that come into contact with aggressive substances.

Note: the surface of the flange is untreated and has a "foggy mirror" effect, which emphasizes its natural appearance and high quality of the material.
