Stainless steel flange for pipe 50x50 (90x90) mm AISI 201 (Product code: 7017)

Name: Stainless steel flange for pipe 50x50 (90x90) mm AISI 201
Brand: Vinmay
SKU: 7017
Price: 100 UAH
Availability: InStock
Rating: 10.00 (4 reviews)

Views:

6931

Rating:

• Manufacturer: Vinmay •

• Manufacturer code: F201P50Х50-90X90 •

• UCGFEA: 7308 90 59 00 •

Grade:

Medium corrosion resistance, non-magnetic - more details...

Prices

50 pcs.	-	100 pcs.	98 грн. / pcs.
from 100 pcs.			97 грн. / pcs.

Updated: Wednesday, 29 April 2026

Available

Quantity in stock: 352

Price: 100 грн. / pcs.

plus shipping

Qty:

pcs.

Characteristics Stainless steel flange for pipe 50x50 (90x90) mm AISI 201

Actual weight: 0.14 Kg / pcs.

Dimensions:

Hole size □, a×a (mm) / technical tolerance +0.5 mm / : 50х50

Thickness, S (mm): 3.5

Outer section □, A×A (mm): 90х90

Number of mounting holes, n (pcs.): 4

Mounting hole diameter ∅, dₕ (mm) / technical tolerance +0.5 mm / : 10

External surface treatment:

Surface: untreated

Color: light gray

Pattern: fogged mirror

Material of manufacture:

Metal type: stainless steel

Steel grade: AISI 201

Steel Grade Analog: EN 1.4372

Design features:

Type of connection with pipe: welding

Form: square

Operating temperature range

Max. continuous operating temperature: +400°C

Max. intermittent temperature: +550°C

Min. continuous operating temperature: -40°C

Thermal cycling resistance: moderate

Intended Use & Application

Application Areas: railings, barriers, posts, furniture frames, designed for rigid static mounting of square profile tubes to any solid surface (floors, walls, ceilings, pavements, asphalt, etc.), and as a durable base for railing posts, fences, and furniture frames

Recommended Environment: office and retail centers, for low humidity interiors, for moderate (non-aggressive) environments, educational institutions, medical institutions, clinics, train stations, public places, home

Usage Restrictions: do not use in environments with constant high humidity, not intended for pressurized piping systems and does not provide for the use of gaskets to create airtight or leak-proof connections

Maintenance recommendations

Recommended cleaning and disinfection products: mild soap solutions, chlorine-free disinfectants, soft cloth or sponge

⛔Prohibited care products and methods: chlorine-based products, active acids, abrasive powders, metal brushes

Additional information:

Order Step (pcs): 1

Product condition: new

Product Type: stainless steel flange

Country of Origin: China

Description Stainless steel flange for pipe 50x50 (90x90) mm AISI 201

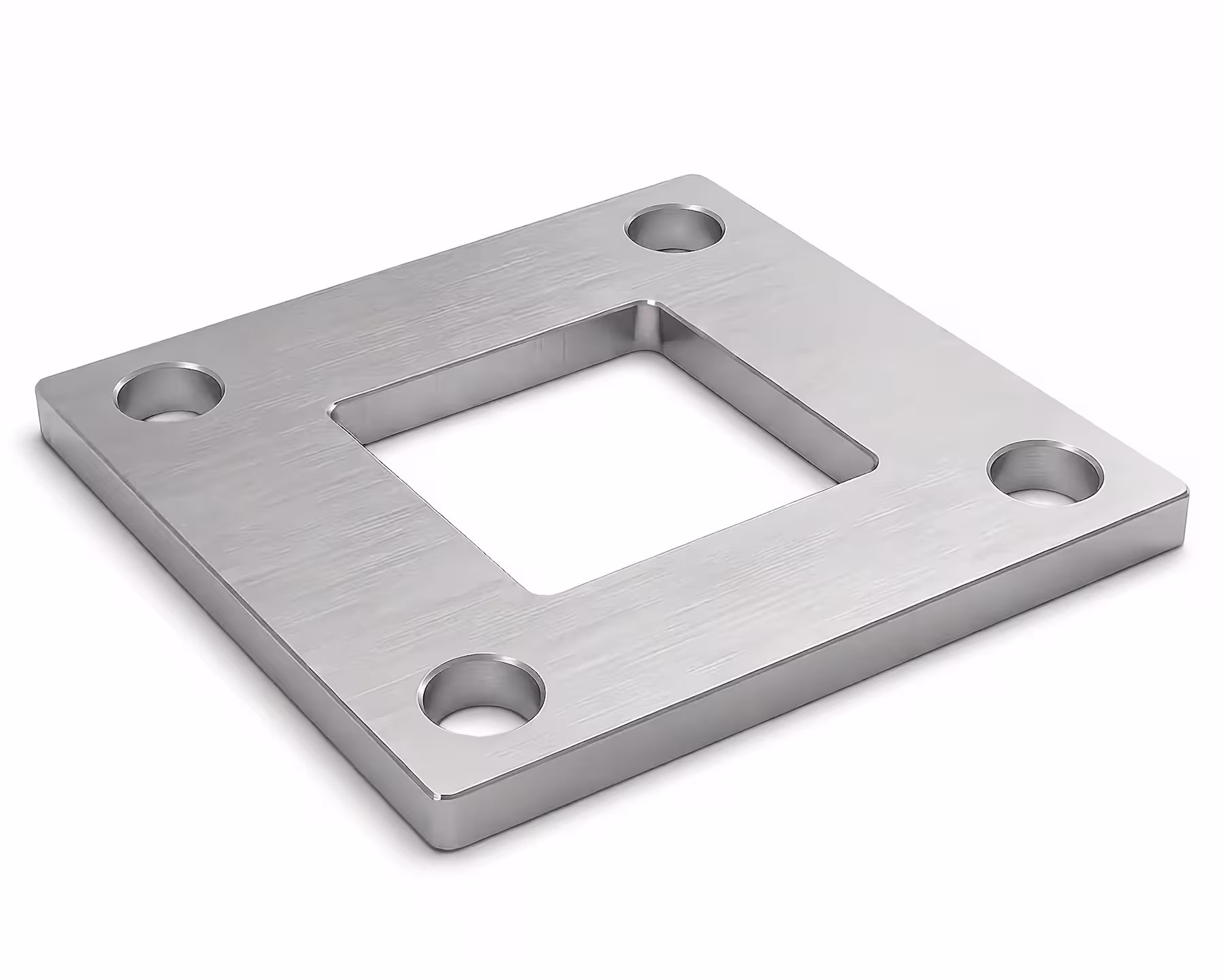

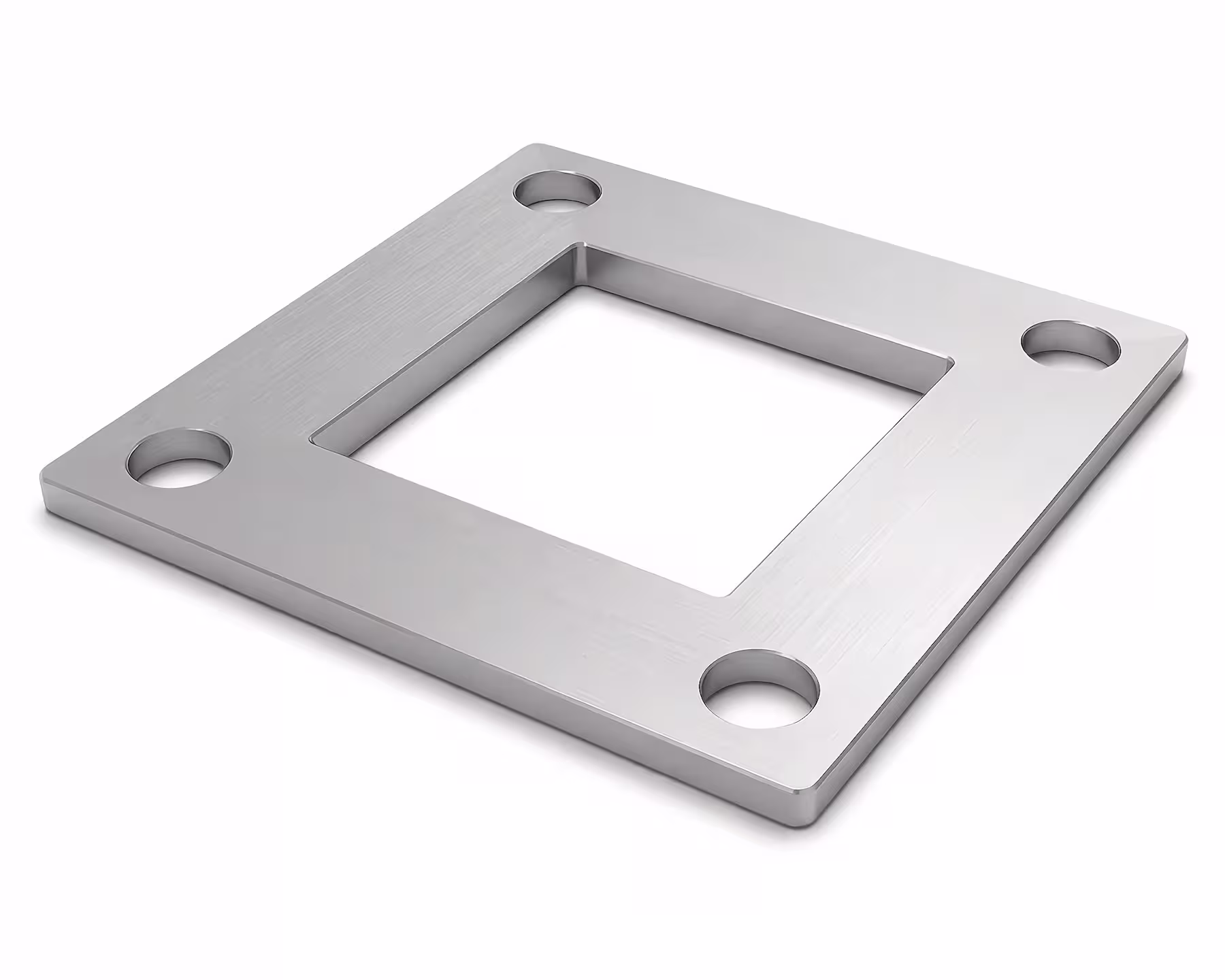

Introducing a strong and reliable square weld-on flange made of stainless steel AISI 201. This is the ideal solution for fastening 50x50 mm profile pipes. Created to ensure maximum stability, this flange is a key element for mounting large-scale railings, posts, and other structures that require a reliable connection to a surface.

Exceptional characteristics

Material reliability: the flange is made of AISI 201 steel, known for its high corrosion resistance in moderately aggressive environments. This is an optimal choice for use in indoor spaces where there is no constant contact with aggressive chemicals.
Optimal dimensions: with a thickness of 3.5 mm and an outer section of 90x90 mm, this flange provides a large contact area, guaranteeing high fastening strength. Four 10 mm diameter holes allow it to be securely fixed to any flat surface using bolts or anchors.
Durable welded connection: this flange is designed for welding, which allows for the creation of a monolithic joint. This type of fastening provides the highest level of rigidity and resistance to vibrations, guaranteeing the durability and safety of the structure.
Aesthetic appearance: the untreated surface with a characteristic "foggy mirror" effect gives the product a modern and concise look that will easily fit into any design. If necessary, the welding area and the flange itself can be additionally covered with a stainless steel cover for pipe 50X50 mm 400 GRIT, which will give your structure an even better appearance.

Universal application

Thanks to its dimensions and strength, this flange is an indispensable component for:

Mounting railings, handrails, and posts on stairs, ramps, and balconies.
Building frames for furniture and other structures.
Creating durable joints in any projects that require a reliable fastening of 50x50 mm pipes to a base.

This flange is an investment in durability and safety that allows you to implement projects of any complexity with confidence in their reliability.

Only at Ukirs can you buy a stainless steel flange for a 50x50 (90x90) mm pipe AISI 201 of the highest quality at the most favorable price with delivery in Ukraine!
